TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

id091800806200

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

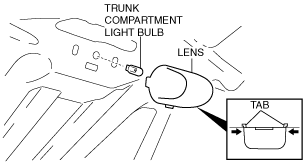

2.  Disengage the tabs by pressing both ends of the lens in the directions indicated by the arrows and remove the lens.

am3uuw00005409

3.  Remove the trunk compartment light bulb.

4.  Install in the reverse order of removal.
