AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OFF SWITCH REMOVAL/INSTALLATION

id091800813000

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

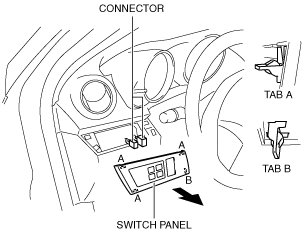

2.  Remove the switch panel in the direction of the arrow shown in the figure.

am3uuw00005294

3.  Disconnect the connector.

4.  Remove the AFS OFF switch in the direction of the arrow (2) shown in the figure while pressing the tabs in the direction of the arrow (1).

am3uuw00005295

5.  Remove the AFS OFF switch.

6.  Install in the reverse order of removal.
