MICROPHONE REMOVAL/INSTALLATION


id092000801400

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

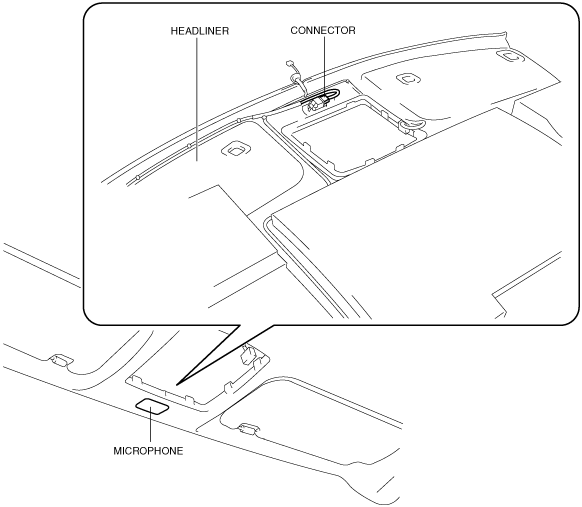

Without sunroof

am3uuw00006946

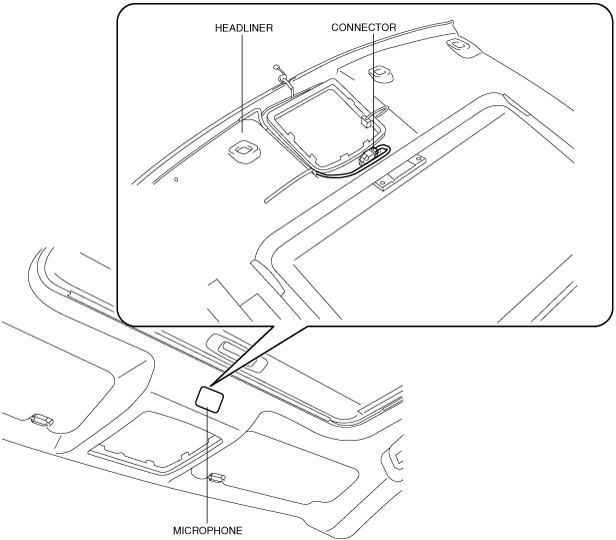

With sunroof

am3uuw00006947

4.  Remove the microphone in the direction of the arrow (2) shown in the figure while pressing the microphone tabs in the direction of the arrow (1).

Without sunroof

am3uuw00006948

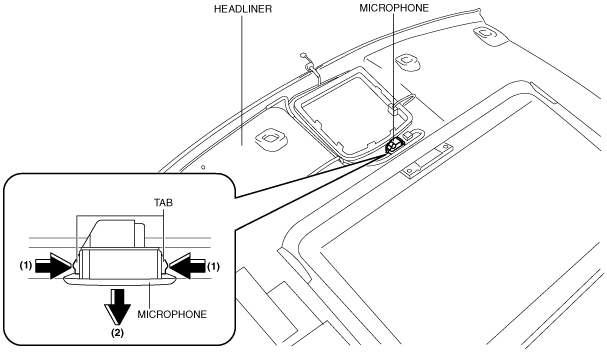

With sunroof

am3uuw00006949

5.  Install in the reverse order of removal.
