REAR DOOR SPEAKER REMOVAL/INSTALLATION

id092000805000

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the regulator handle. (Vehicles without rear power window) (See REGULATOR HANDLE REMOVAL.)(See REGULATOR HANDLE INSTALLATION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

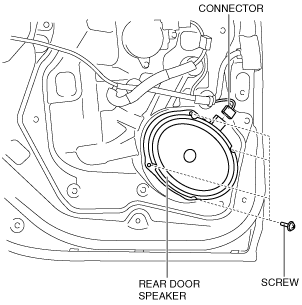

Without Bose^®

am3uuw00002830

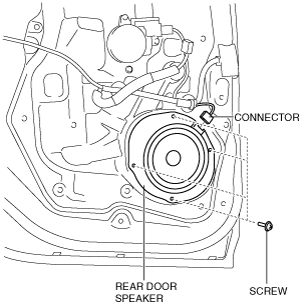

With Bose^®

am3uuw00002829

5.  Remove the screw.

6.  Remove the rear door speaker in the direction of the arrow shown in the figure.

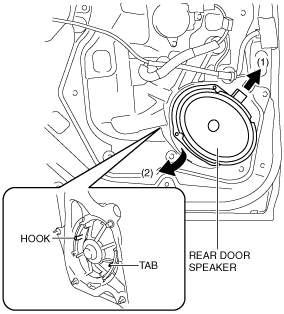

Without Bose^®

am3uuw00002832

With Bose^®

am3uuw00002831

7.  Install in the reverse order of removal.
