USB ADAPTER INSPECTION
id092000814600
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)
2. Remove the grove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
3. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

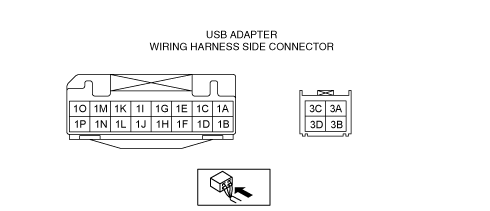

Terminal Voltage Table (Reference)
am3zzw00013267
|
Except SKYACTIV-G 2.0
|
Terminal |
Signal name |
Connected to |
Measurement conditions |
Voltage (V) |
Inspection item(s) |
||
|---|---|---|---|---|---|---|---|
|
1A
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
Body ground
|
||
|
1B
|
SHIELD GND
|
Audio unit
|
Under any condition
|
1.0 or less
|
Body ground
|
||
|
1C
|
Signal RH (+)
|
Audio unit
|
Because this terminal is for audio signal, determination using terminal voltage inspection is not possible.
|
||||
|
1E
|
Signal LH (+)
|
Audio unit
|
Because this terminal is for audio signal, determination using terminal voltage inspection is not possible.
|
||||
|
1G
|
Signal GND
|
Audio unit
|
Because this terminal is for audio signal, determination using terminal voltage inspection is not possible.
|
||||
|
1K
|
MS-CAN_L
|
-
|
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
|
||||
|
1L
|
MS-CAN_H
|
-
|
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
|
||||
|
1O
|
ACC
|
ACC Relay
|
Switch the ignition to ACC or ON
|
B+
|
ACC Relay
|
||
|
Ignition switched OFF (LOCK)
|
1.0 or less
|
||||||
|
1P
|
Back up
|
ROOM 15A fuse
|
Under any condition
|
B+
|
ROOM 15 A fuse
Battery
|
||
|
3A
|
USB power supply
|
Auxiliary jack/USB port
|
Switch the ignition to ACC or ON
|
5.25 or less
|
Auxiliary jack/USB port
|
||
|
Ignition switched OFF (LOCK)
|
1.0 or less
|
Auxiliary jack/USB port
|
|||||
|
3B
|
USB data (+)
|
Auxiliary jack/USB port
|
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
|
||||
|
3C
|
USB GND
|
Auxiliary jack/USB port
|
Under any condition
|
1.0 or less
|
Auxiliary jack/USB port
|
||
|
3D
|
USB data (-)
|
Auxiliary jack/USB port
|
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
|
||||
SKYACTIV-G 2.0
|
Terminal |
Signal name |
Connected to |
Measurement conditions |
Voltage (V) |
Inspection item(s) |
||
|---|---|---|---|---|---|---|---|
|
1A
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
Body ground
|
||
|
1B
|
SHIELD GND
|
Audio unit
|
Under any condition
|
1.0 or less
|
Body ground
|
||
|
1C
|
Signal RH (+)
|
Audio unit
|
Because this terminal is for audio signal, determination using terminal voltage inspection is not possible.
|
||||
|
1E
|
Signal LH (+)
|
Audio unit
|
Because this terminal is for audio signal, determination using terminal voltage inspection is not possible.
|
||||
|
1G
|
Signal GND
|
Audio unit
|
Because this terminal is for audio signal, determination using terminal voltage inspection is not possible.
|
||||
|
1K
|
MS-CAN_L
|
-
|
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
|
||||
|
1L
|
MS-CAN_H
|
-
|
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
|
||||
|
1O
|
ACC
|
ACC Relay
|
Switch the ignition to ACC or ON
|
B+
|
ACC Relay
|
||
|
Ignition switched OFF (LOCK)
|
1.0 or less
|
||||||
|
1P
|
Back up
|
ROOM2 15A fuse
|
Under any condition
|
B+
|
ROOM2 15 A fuse
Battery
|
||
|
3A
|
USB power supply
|
Auxiliary jack/USB port
|
Switch the ignition to ACC or ON
|
5.25 or less
|
Auxiliary jack/USB port
|
||
|
Ignition switched OFF (LOCK)
|
1.0 or less
|
Auxiliary jack/USB port
|
|||||
|
3B
|
USB data (+)
|
Auxiliary jack/USB port
|
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
|
||||
|
3C
|
USB GND
|
Auxiliary jack/USB port
|
Under any condition
|
1.0 or less
|
Auxiliary jack/USB port
|
||
|
3D
|
USB data (-)
|
Auxiliary jack/USB port
|
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
|
||||
