AudioPilot®2 MICROPHONE REMOVAL/INSTALLATION

id092000866300

Note

•  AudioPilot^® 2 is a registered trademark of Bose^® Corporation.

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Disconnect the connector.

3.  Remove the nut.

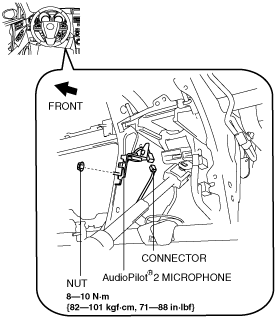

am3uuw00002735

4.  Remove the AudioPilot^® 2 microphone.

5.  Install in the reverse order of removal.
