HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

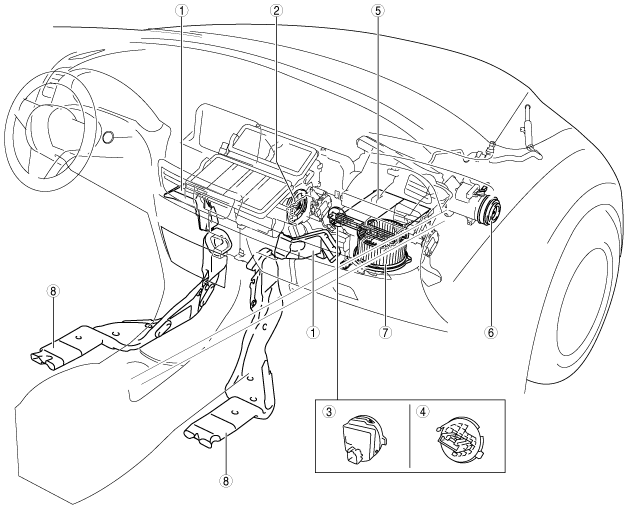

am3zzw00015982

1	Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
2	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
3	Blower fan controller (7-speed type airflow volume control dial) (See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION.) (See BLOWER FAN CONTROLLER INSPECTION.)
4	Resistor (4-speed type airflow volume control dial) (See RESISTOR REMOVAL/INSTALLATION) (See RESISTOR INSPECTION)
5	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
6	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MZR 1.6].)(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.5].)(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2].) (See MAGNETIC CLUTCH ADJUSTMENT [MZR 1.6].)(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 1.5].)(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 2.2].) (See MAGNETIC CLUTCH INSPECTION [MZR 1.6].)(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-D 1.5])(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-D 2.2].)
7	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION.) (See BLOWER MOTOR INSPECTION.)
8	Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

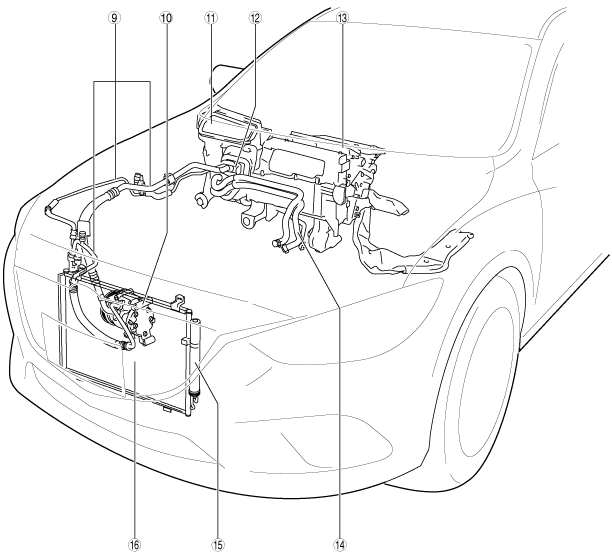

SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5

am3zzw00015983

9	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
10	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
11	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
12	Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION.)
13	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EXPANSION VALVE REMOVAL/INSTALLATION.) (See EVAPORATOR INSPECTION.) (See HEATER CORE INSPECTION.)
14	Heater hose (See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
15	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION.)
16	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)

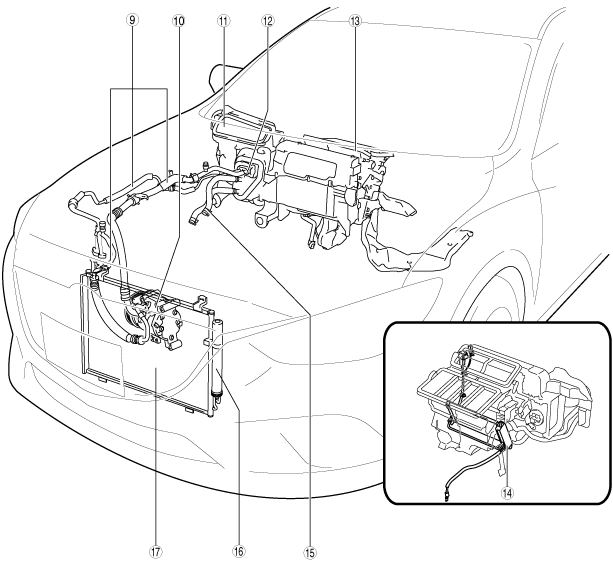

SKYACTIV-D 1.5, SKYACTIV-D 2.2

am3zzw00015984

9	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
10	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
11	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
12	Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION.)
13	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EXPANSION VALVE REMOVAL/INSTALLATION.) (See EVAPORATOR INSPECTION.) (See HEATER CORE INSPECTION.)
14	PTC heater (with PTC heater) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION.) (See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION.)
15	Heater hose (See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
16	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION.)
17	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)

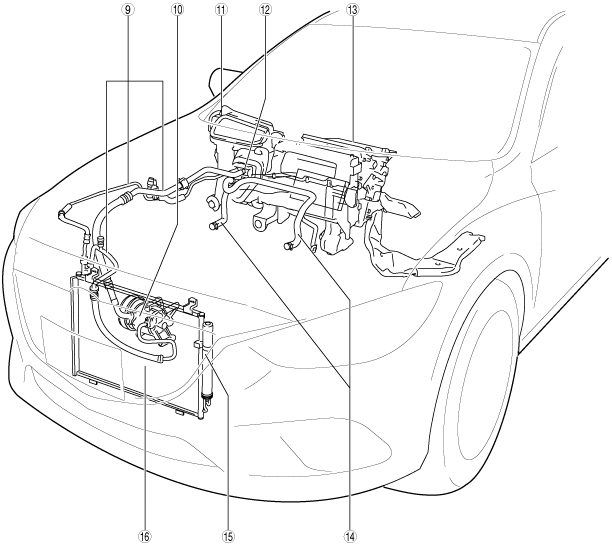

MZR 1.6

am3zzw00015985

9	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION [MZR 1.6].)
10	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [MZR 1.6].)
11	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
12	Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION.)
13	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EXPANSION VALVE REMOVAL/INSTALLATION.) (See EVAPORATOR INSPECTION.) (See HEATER CORE INSPECTION.)
14	Heater hose (See HEATER HOSE REMOVAL/INSTALLATION [MZR 1.6].)
15	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION.)
16	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
