FRONT FOG LIGHT REMOVAL/INSTALLATION


id091800802100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove the front fog light bezel No.1. (See FRONT FOG LIGHT BEZEL REMOVAL/INSTALLATION.)

4.  Remove the screws.

am3uuw00010404

5.  Pull out the pins from the bracket and pull out the front fog light and the bracket from the front bumper.

am3uuw00010405

6.  Disconnect the connector and remove the front fog light and the bracket.

am3uuw00010406

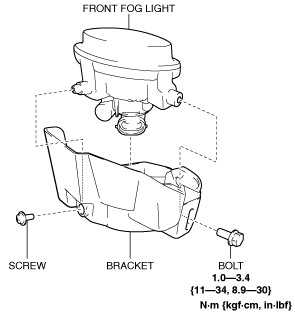

7.  Remove the screw.

am3uuw00010407

8.  Remove the bolt.

9.  Remove the front fog light from the bracket.

10.  Install in the reverse order of removal.

11.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
