DTC P0138 [LF, L3]

id0102a3805100

DTC P0138

Rear HO2S circuit high input

DETECTION CONDITION

• The PCM monitors input voltage from rear HO2S. If the input voltage from the rear HO2S sensor is above 1.2 V for 0.8 s, the PCM determines that circuit input is high.
Diagnostic support note
• This is a continuous monitor (HO2S).
• MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
• PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
• FREEZE FRAME DATA is available.
• DTC is stored in the PCM memory.

POSSIBLE CAUSE

• Rear HO2S malfunction

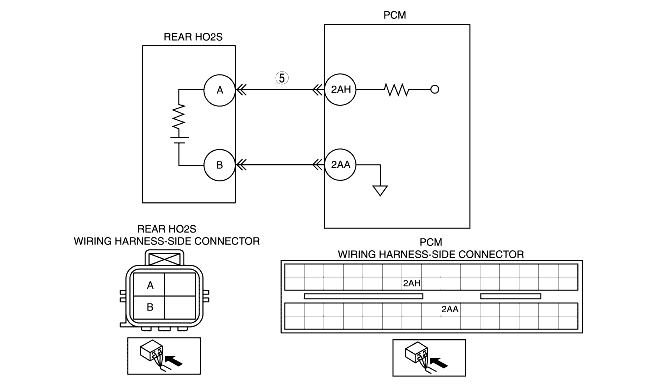

• Short to power supply in wiring harness between rear HO2S terminal A and PCM terminal 2AH
• Rear HO2S or PCM terminal shorted
• PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
Yes
Perform repair or diagnosis according to available repair information.
• If vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY RELATED PENDING OR STORED DTC
• Turn the ignition switch off, then to the ON position (Engine off).
• Verify pending code or stored DTCs using WDS or equivalent.
• Is other DTC present?
Yes
Go to the appropriate DTC troubleshooting procedures.
No
Go to the next step.
4
IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA
• Is DTC P0138 on FREEZE FRAME DATA?
Yes
Go to the next step.
No
Go to troubleshooting procedures for DTC on FREEZE FRAME DATA.
5
INSPECT REAR HO2S SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch off.
• Disconnect rear HO2S connector.
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between rear HO2S terminal A (wiring harness-side) and body ground.
• Is any voltage reading?
Yes
Replace short to power supply, then go to Step 7.
No
Go to the next step.
6
VERIFY CURRENT INPUT SIGNAL STATUS
• Start engine.
• Access O2S12 PID using WDS or equivalent.
• Verify PID while racing engine at least 10 times in NEUTRAL.
• Does PID stay above 0.55 V?
Yes
Repair or replace sensor, then go to the next step.
No
Go to the next step.
7
VERIFY TROUBLESHOOTING OF DTC P0138 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Turn the ignition switch to the ON position (Engine off).
• Clear the DTC from the memory using the WDS or equivalent.
• Perform the HO2S heater, HO2S, and TWC Repair Verification Drive Mode.
• Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, then go to the next step.
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
• Perform the "After Repair Procedure".
• Are any DTC present?
Yes
Go to the applicable DTC troubleshooting.
No
Troubleshooting completed.
