Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
|
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|

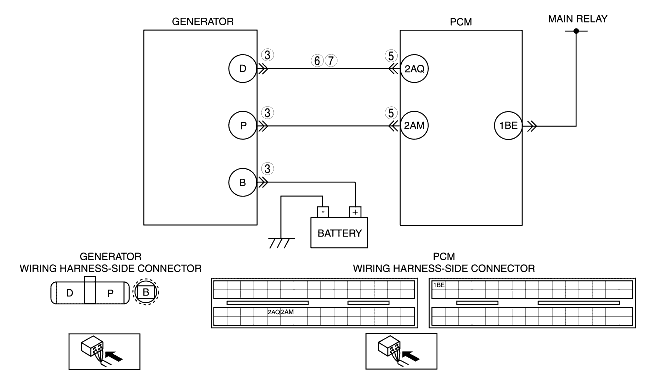

INSPECT POOR CONNECTION OF GENERATOR CONNECTOR
• Turn the ignition switch to off.
• Disconnect generator connector.
• Inspect for poor connection
(damaged, pulled-out terminals, corrosion, etc.).
• Is there a malfunction?
|
Yes
|
Repair or replace terminals, then go to Step 8.
|
|
No
|
Go to the next step.
|
||
|
4
|
CLASSIFY GENERATOR MALFUNCTION OR OTHER MALFUNCTION
• Turn the ignition switch to the ON position (Engine off).
• Measure voltage between generator terminal D (wiring harness-side) and body ground.
• Is the voltage B+?
|
Yes
|
Go to the next step.
|
|
No
|
Malfunction at generator.
Go to Step 7.
|
||
|
5
|
INSPECT POOR CONNECTION OF PCM CONNECTOR
• Turn the ignition switch to off.
• Disconnect PCM connector.
• Inspect for poor connection
(damaged, pulled-out terminals, corrosion, etc.).
• Is there a malfunction?
|
Yes
|
Repair or replace pins, then go to Step 8.
|
|
No
|
Go to the next step.
|
||
|
6
|
INSPECT GENERATOR CONTROL CIRCUIT FOR SHORT TO POWER
• Turn the ignition switch to the ON position (Engine off).
• Measure voltage between generator terminal D (wiring harness-side) and body ground.
• Is the voltage B+?
|
Yes
|
Repair or replace wiring harness for short to power supply, then go to Step 8.
|
|
No
|
Go to Step 8.
|
||
|
7
|
INSPECT GENERATOR CONTROL TERMINAL FOR SHORT TO POWER
• Measure voltage between generator terminal D (part-side) and body ground.
• Is the voltage B+?
|
Yes
|
Repair or replace generator, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
8
|
VERIFY TROUBLESHOOTING OF DTC P2504 COMPLETED
• Make sure to reconnect all connectors.
• Clear DTC from PCM memory using WDS or equivalent.
• Perform KOER self-test.
Start the engine.
• Is same DTC present?
|
Yes
|
Replace PCM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
9
|
VERIFY AFTER REPAIR PROCEDURE
• Perform "After Repair Procedure".
• Is there any DTC present?
|
Yes
|
Go to applicable DTC troubleshooting.
(See DTC TABLE [LF, L3].)
|
|
No
|
Troubleshooting completed.
|
||
