FUEL SYSTEM LOCATION INDEX

id011400800100

Engine Compartment Side

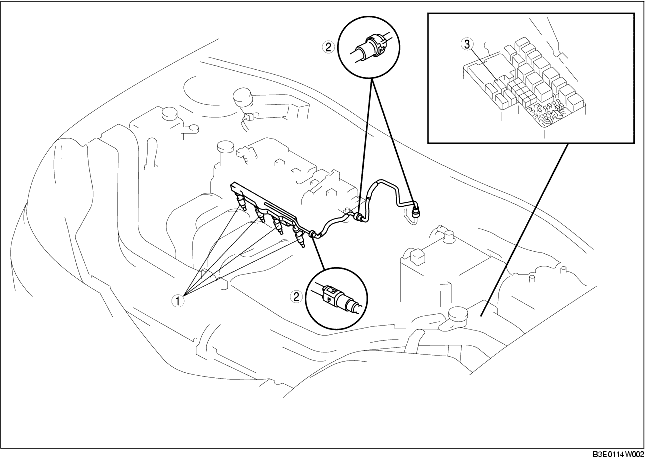

ZY, Z6

.


1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [ZY, Z6].) (See FUEL INJECTOR INSPECTION.)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION.)
3	Fuel pump relay

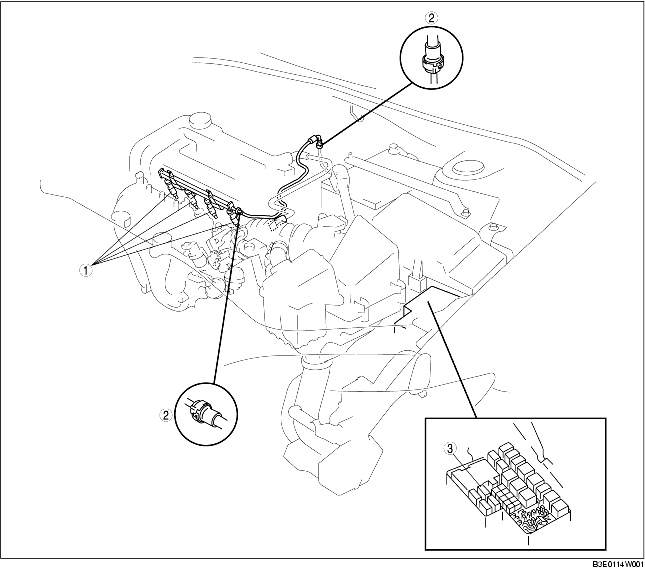

LF, L3

.


1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [LF, L3].) (See FUEL INJECTOR INSPECTION.)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION.)
3	Fuel pump relay

Fuel Tank Side

.


1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION.) (See FUEL TANK INSPECTION.)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION.) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY.) (See FUEL PUMP UNIT INSPECTION.)
3	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION.)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION.)
