EMISSION SYSTEM LOCATION INDEX

id011600803700

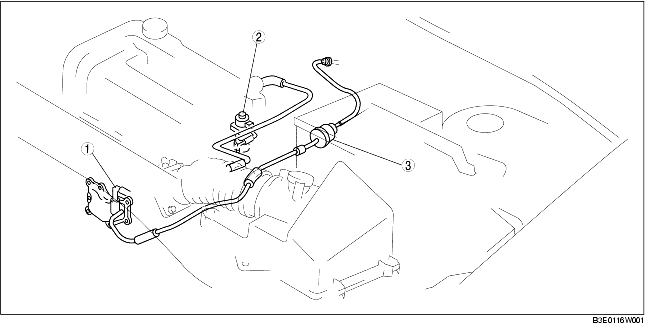

Engine Compartment Side

ZY, Z6

.


1	Positive crankcase ventilation (PCV) valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION.)
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [ZY, Z6].) (See EGR VALVE INSPECTION.)
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [ZY, Z6].) (See PURGE SOLENOID VALVE INSPECTION.)

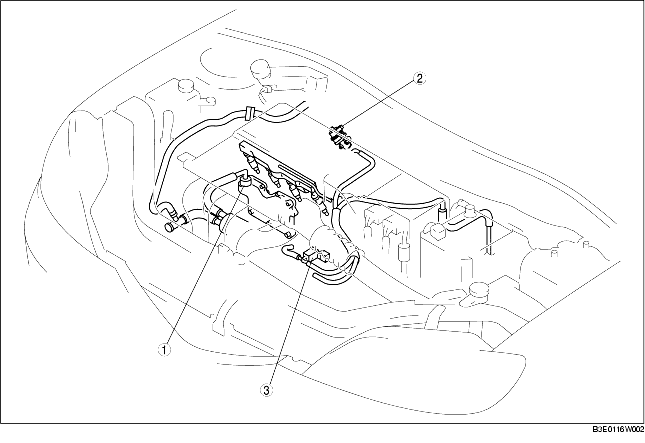

LF, L3

.


1	Positive crankcase ventilation (PCV) valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION.)
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [LF, L3].) (See EGR VALVE INSPECTION.)
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [LF, L3].) (See PURGE SOLENOID VALVE INSPECTION.)

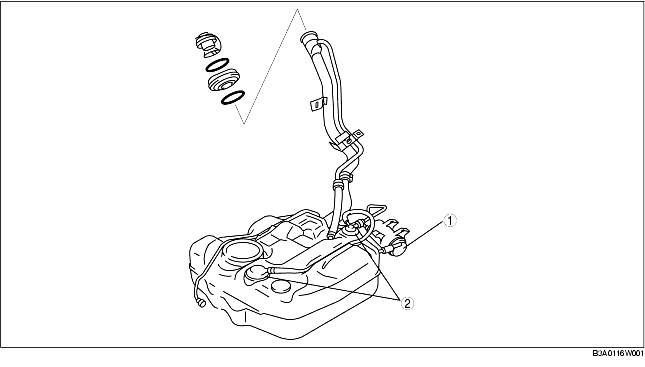

Fuel Tank Side

.


1	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION.) (See CHARCOAL CANISTER INSPECTION.)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION.) (See ROLLOVER VALVE INSPECTION.)
