IGNITION COIL REMOVAL/INSTALLATION [LF, L3]


id0118008002a5

1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

2. Disconnect the negative battery cable.

3. Remove the plug hole plate.

(See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L3].)

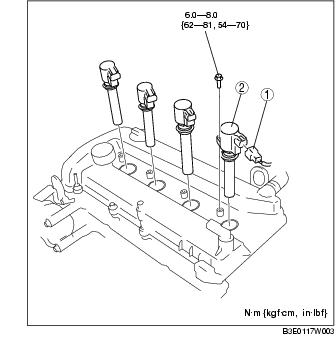

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

1
Connector
2
Ignition coil
