THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [ZY, Z6]

1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)

2. Disconnect the negative battery cable.

3. Perform the following procedure for easier access.

• Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)

• Remove the air hose.

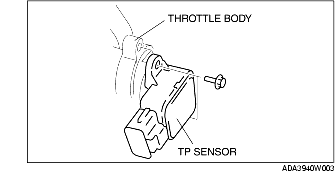

4. Remove the TP sensor.

5. Verify that the throttle valve is fully closed.

6. Install the TP sensor to the throttle body.

Tightening torque

1.6-2.4 N·m {17-24 kgf·cm, 15-21 in·lbf}

7. Verify that the throttle valve moves smoothly.

8. Connect the TP sensor connector.

9. Verify that the TP sensor output voltage (WDS PID: TP) is within the specification when it is open or closed. (See PCM INSPECTION [ZY, Z6].)

• If not within the specification, inspect the TP sensor. (See THROTTLE POSITION (TP) SENSOR INSPECTION [ZY, Z6].)
