1. Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZY, Z6].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L3].)
2. Remove the heat insulator.
3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

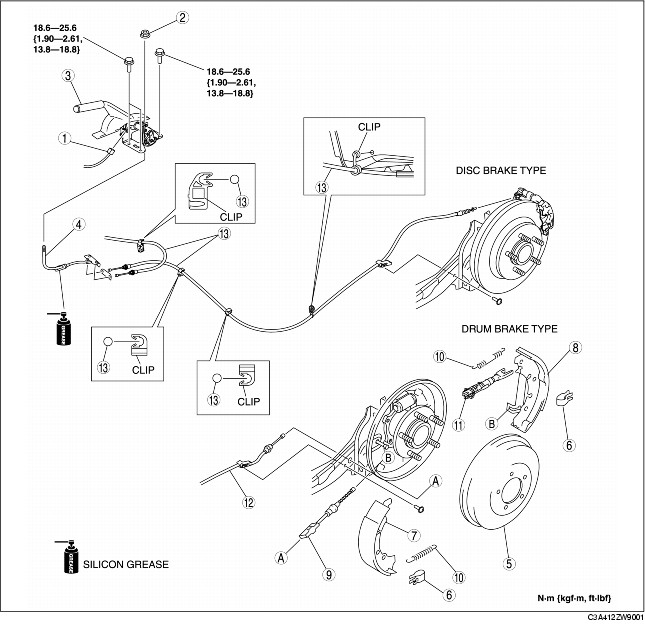

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION.)
|
1
|
Parking brake switch connector
|
|
2
|
Adjusting nut
|
|
3
|
Parking brake lever
|
|
4
|
Front parking brake cable
|
|
5
|
Brake drum
|
|
6
|
Hold spring
|
|
7
|
Leading shoe
|
|
8
|
Trailing shoe
|
|
9
|
End cable
(See End Cable Removal Note.)
(See End Cable Installation Note.)
|
|
10
|
Shoe return spring
|
|
11
|
adjuster
(See Adjuster Installation Note.)
|
|
12
|
Rear parking brake cable
|

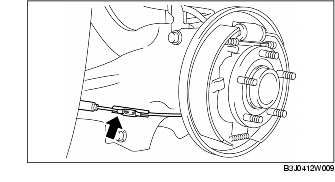

1. Disconnect the rear parking brake cable indicated in the figure, remove the end cable.
1. Pass the rear parking brake cable inside the rear ABS wheel-speed sensor wiring harness as shown in the figure.
2. Install the rear parking brake cable.

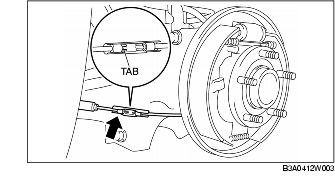

1. Install the rear parking brake cable to the end cable.
2. Make sure that the end cable tab is caught correctly.

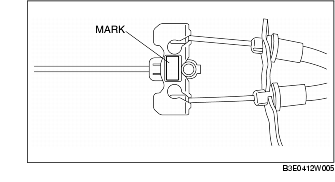

1. Install the front parking brake cable with the mark on the equalizer facing toward the vehicle downside.
