INPUT/TURBINE SPEED SENSOR INSPECTION

Caution

• Water or foreign material entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign material on the connector when disconnecting it.

1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

2. Disconnect the negative battery cable.

3. Remove the battery, battery box and battery tray. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

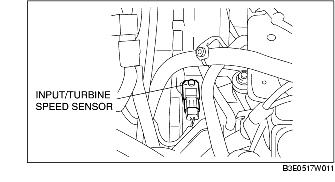

4. Disconnect the input/turbine speed sensor connector.

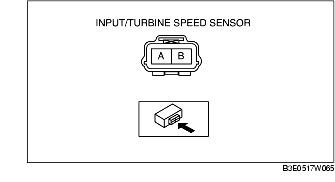

5. Measure the resistance between the input/turbine speed sensor terminals.

• If there is any malfunction, replace the input/turbine speed sensor.

Resistance

250-600 ohms (ATF temperature:

-40-160 °C {-40-320 °F})

6. Connect the input/turbine speed sensor connector.

7. Install the battery, battery box and battery tray. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

8. Connect the negative battery cable.

9. Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION [LF, L3].)
