REAR HEAT DUCT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)

(2) Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)

(3) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Console (See CONSOLE REMOVAL/INSTALLATION.)

(5) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(8) Lower anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(9) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(10) Fuel-filler lid opener lever cover (See FUEL-FILLER LID OPENER REMOVAL/INSTALLATION.)

(11) Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)

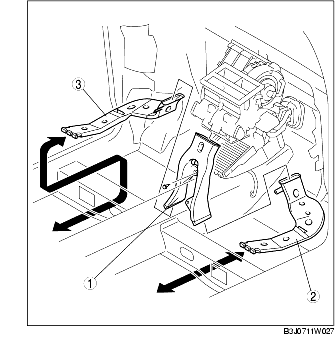

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
