FUEL-FILLER LID OPENER REMOVAL/INSTALLATION

1. To remove the fuel-filler lid opener, remove the following procedure:

• 5HB

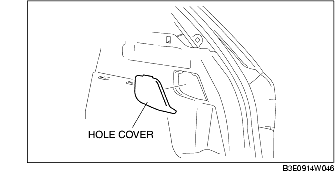

- Remove the hole cover on the trunk side trim. (RH)

• 4SD

- Remove the trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

- Slightly bend back the trunk side trim. (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

2. To remove the fuel-filler lid opener lever, remove the following part:.

(1) Front scuff plate (driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

3. When removing the fuel-filler lid opener cable, perform the following procedure:

(1) Remove the following parts:

1) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

2) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3) Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)

4) Tire house trim (driver's side) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

5) B-pillar lower trim (driver's side) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

6) Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)

(2) Partially peel back the floor covering so that the fuel-filler lid opener cable can be removed.

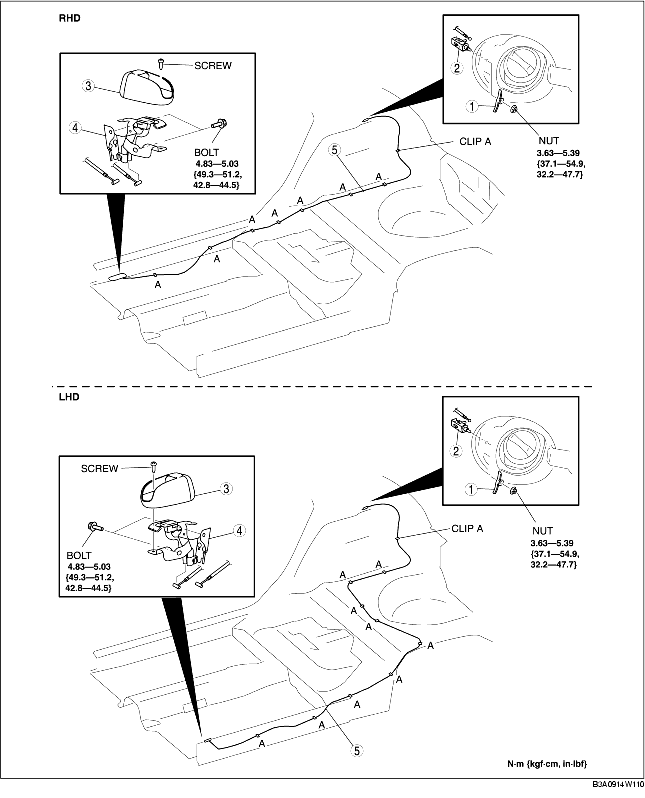

(3) Remove the fuel-filler lid opener cable from clips A.

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

.
