AIR INTAKE ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Front scuff plate (SeeFRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (SeeFRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Decoration panel (SeeDECORATION PANEL REMOVAL/INSTALLATION.)

(4) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3. Slide the blower case to the position shown in the figure. (See BLOWER MOTOR REMOVAL.) (R.H.D.)

4. Remove in the order indicated in the table.

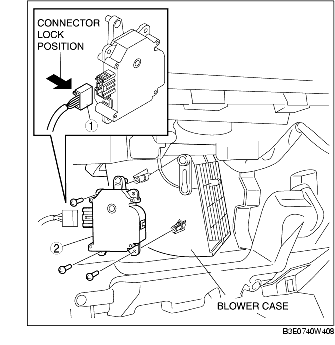

L.H.D.

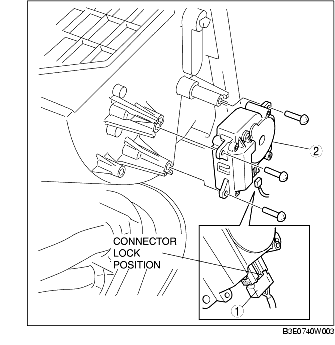

R.H.D.

5. Install in the reverse order of removal.
