BLOWER MOTOR REMOVAL

id074000807300

Note

• The blower motor is located on the A/C unit as shown in the figure.

L.H.D.

am3zzw00009001

R.H.D.

am3zzw00009002

• Perform the work from the front passenger’s side in the posture shown in the figure.

am3zzw00009003

1. Set the air intake mode to FRESH.

2. Disconnect the negative battery cable.

3. Remove the following parts:

(1) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(6) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7) Column cover (L.H.D.) (See COLUMN COVER REMOVAL/INSTALLATION.)

(8) Meter hood (L.H.D.) (See METER HOOD REMOVAL/INSTALLATION.)

(9) Instrument cluster (L.H.D.) (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(10) Steering shaft (L.H.D.) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(11) Accelerator pedal (L.H.D.) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [ZY, Z6].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [LF, L3].)

(12) Brake pedal (L.H.D.) (See BRAKE PEDAL REMOVAL/INSTALLATION.)

(13) PJB and PJB bracket (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.)

4. Cut off the temporary steering stay on the passenger’s side.

am3zzw00009004

5. Remove the PJB wiring harness grommets. (R.H.D.)

6. Disconnect the two fluid pipes for the clutch pedal and remove the four clutch pedal bracket installation nuts. (See CLUTCH PEDAL REMOVAL/INSTALLATION.) (R.H.D.)

7. Remove the screws shown in the figure and slide the blower case.

L.H.D.

am3zzw00009005

R.H.D.

am3zzw00009006

8. Disconnect the air intake actuator connector.

9. Remove the blower case shown in the figure.

L.H.D.

am3zzw00009007

R.H.D.

am3zzw00009008

am3zzw00009009

10. Remove the air guide.

L.H.D.

am3zzw00009010

R.H.D.

am3zzw00009011

11. Install the SST (49 B061 015A or 49 B061 015) to the blower motor. (See SST (49 B061 015A) Installation Note.) (See SST (49 B061 015) Installation Note

L.H.D.

am3zzw00008960

am3zzw00009048

R.H.D.

abatjw00003603

am3zzw00009049

12. Disconnect the resistor connector. (Manual air conditioner)

13. Disconnect the blower motor cooling pipe connected to the blower motor.

L.H.D.

am3zzw00009012

R.H.D.

am3zzw00009013

14. Remove the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)

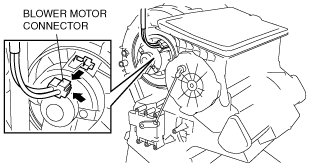

15. Disconnect the blower motor connector as shown in the figure.

L.H.D.

am3zzw00009014

R.H.D.

am3zzw00009015

16. Remove the blower motor cover. (See Blower Motor Cover Removal Note.)

Caution

• When the blower motor cover is removed, the blower motor could fall in the A/C unit case causing the sirocco fan to be damaged. Therefore another person must hold the blower motor at the installation position.

am3zzw00009016

17. Remove the blower motor by pulling it out. (See Blower Motor Removal Note.)

SST (49 B061 015A) Installation Note

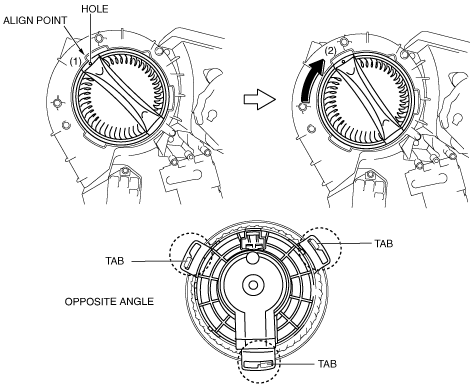

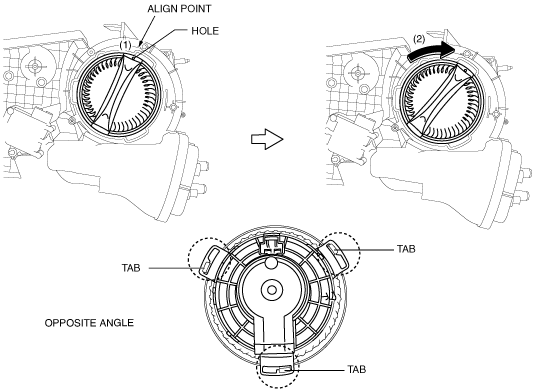

1. Align the SST hole with the align point (1) and rotate the SST (2) and then confirm that the SST tabs into the three set holes on the blower motor they are inserted as shown in the figure.

L.H.D.

am3zzw00008966

R.H.D.

am3zzw00008967

SST (49 B061 015) Installation Note

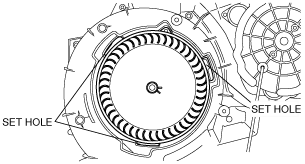

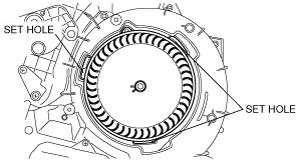

1. Align the SST guide with the sirocco fan clip position and press the SST tabs (3) into the three set holes on the blower motor until they are inserted.

L.H.D.
