AIR BAG SYSTEM LOCATION INDEX
id081000805300
Air Bag System Specification Identification
• Because two types of driver and passenger-side air bag module controls, "Two-step deployment control" and "Standard deployment control", are available depending on when the vehicle was produced, identify the specification referring to the following identification.
Identification
-
• In this manual, "Two-step deployment control system" or "Standard deployment control system" is used if the service contents differ depending on the control.
-
• Identify the control using the following vehicle identification numbers.
-
- Two-step deployment control system: Inferred vehicle identification number JM0 BK103100 100001-155061, JM0 BK10F100 100001-155061, JM6 BK106100 100001-155061, JM7 BK226*0# 100001-155061, JM7 BK226**# 100001-155061, JM7 BK326*0# 100001-155061, JM7 BK326**# 100001-155061, JM7 BK426*0# 100001-155061, JM7 BK426**# 100001-155061, JM7 BK246*0# 100001-155061, JM7 BK246**# 100001-155061, JM7 BK346*0# 100001-155061, JM7 BK346**# 100001-155061, JM7 BK446*0# 100001-155061, JM7 BK446**# 100001-155061
-
- Standard deployment control system: Inferred vehicle identification number JM0 BK103100 155062-, JM0 BK10F100 155062-, JM6 BK106100 155062-, JM7 BK226*0# 155062-, JM7 BK226**# 155062-, JM7 BK326*0# 155062-, JM7 BK326**# 155062-, JM7 BK426*0# 155062-, JM7 BK426**# 155062-, JM7 BK246*0# 155062-, JM7 BK246**# 155062-, JM7 BK346*0# 155062-, JM7 BK346**# 155062-, JM7 BK446*0# 155062-, JM7 BK446**# 155062-

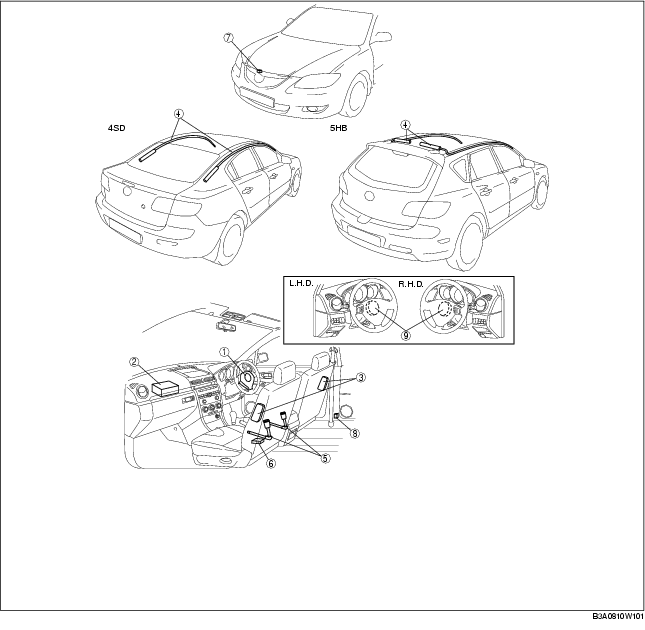

Location Index
.
|
1
|
Driver-side air bag module
|
|
2
|
Passenger-side air bag module
|
|
3
|
Side air bag module
|
|
4
|
Curtain air bag module
|
|
5
|
Pre-tensioner front buckle
|
|
6
|
SAS control module
|
|
7
|
Crash zone sensor
|
|
8
|
Side air bag sensor
|
|
9
|
Clock spring
|
