BONNET REMOVAL/INSTALLATION

Warning

• Removing the bonnet without proper support can be dangerous. The bonnet may fall and injure you. Always perform the following procedure with at least another person.

1. To remove the bonnet hinge, remove the following parts:

(1) Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2) Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3) Front side turn lights (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION.)

(4) Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(5) Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(6) Side step molding (vehicle with the side step molding) (See SIDE STEP MOLDING REMOVAL/INSTALLATION.)

(7) Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

2. Disconnect the windshield washer hose.

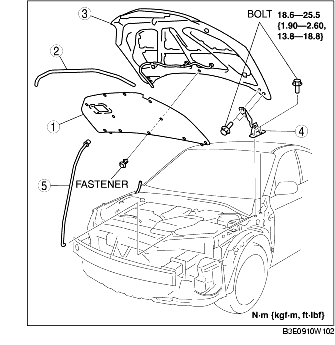

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

5. Adjust the bonnet. (See BONNET ADJUSTMENT.)
