DOOR SASH FILM REMOVAL

1. Partially peel back the glass run channel.

2. Partially peel back the door weatherstrip.

3. For the 5HB, remove the following parts:

(1) Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)

(2) Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

4. Remove the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

5. Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

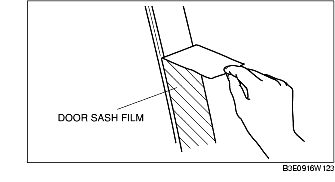

6. Peel off the door sash film by pulling outward from one end.

Note

• Be sure to remove the door sash film slowly, because it can easily tear.
