VENTILATOR GRILLE REMOVAL/INSTALLATION

Driver's Side

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(5) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Dashboard center panel (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION.)

(7) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(8) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(9) Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)

3. Pull the driver-side ventilator grille outward and remove it.

4. Remove the screw, then remove the driver-side demister grille.

5. Install in the reverse order of removal.

Passenger's Side

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Dashboard center panel (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION.)

(7) Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)

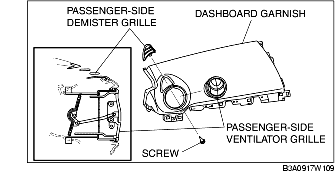

3. Pull the passenger-side ventilator grille outward and remove it.

4. Remove the screw, then remove the passenger-side demister grille.

5. Install in the reverse order of removal.

Center

1. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Remove the dashboard center panel. (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION.)

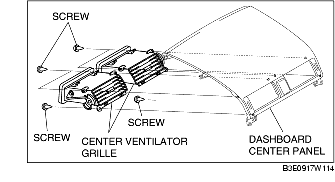

3. Remove the screws, then remove the center ventilator grilles.

4. Install in the reverse order of removal.
