DTC P0443:00 [MZR 1.8, MZR 2.0, MZR 2.5]

id0102f4704500

DTC P0443:00

Purge solenoid valve circuit problem
DETECTION CONDITION
•  The PCM monitors the purge solenoid valve control signal voltage and current. If the following conditions are met, the PCM determines that there is the purge solenoid valve control circuit problem.
―  The PCM turns the purge solenoid valve off, but the voltage of the purge solenoid valve control signal remains low.
―  The PCM turns the purge solenoid valve on, but the current of the purge solenoid valve control signal remains high.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
•  PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
•  FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE

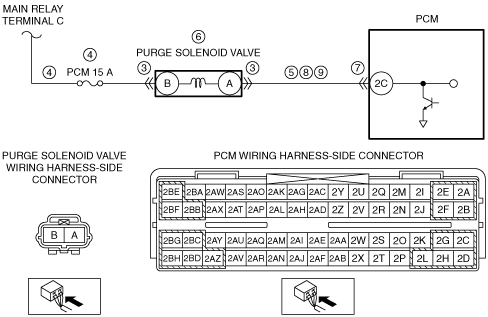

•  Purge solenoid valve connector or terminals malfunction
•  Short to ground or open circuit in purge solenoid valve power supply circuit
―  Short to ground in wiring harness between PCM 15 A fuse and purge solenoid valve terminal B
―  PCM 15 A fuse malfunction
―  Open circuit in wiring harness between main relay terminal C and purge solenoid valve terminal B
•  Short to ground in wiring harness between purge solenoid valve terminal A and PCM terminal 2C
•  Purge solenoid valve malfunction
•  PCM connector or terminals malfunction
•  Short to power supply in wiring harness between purge solenoid valve terminal A and PCM terminal 2C
•  Open circuit in wiring harness between purge solenoid valve terminal A and PCM terminal 2C
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA (Mode 2)/snapshot data been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA (Mode 2)/snapshot data on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT PURGE SOLENOID VALVE CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the purge solenoid valve connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 10.
No
Go to the next step.
4
INSPECT PURGE SOLENOID VALVE POWER SUPPLY CIRCUIT FOR SHORT TO GROUND OR OPEN CIRCUIT
•  Purge solenoid valve connector is disconnected.
•  Switch the ignition to ON (engine off).
•  Measure the voltage at the purge solenoid valve terminal B (wiring harness-side).
•  Is the voltage B+?
Yes
Go to the next step.
No
Inspect the PCM 15 A fuse.
•  If the fuse is melt:
―  Repair or replace the wiring harness for a possible short to ground.
―  Replace the fuse.
•  If the fuse is deterioration:
―  Replace the fuse.
•  If the fuse is normal:
―  Repair or replace the wiring harness for a possible open circuit.
Go to Step 10.
5
INSPECT PURGE SOLENOID VALVE SIGNAL CIRCUIT FOR SHORT TO GROUND
•  Purge solenoid valve connector is disconnected.
•  Switch the ignition to off.
•  Inspect for continuity between purge solenoid valve terminal A (wiring harness-side) and body ground.
•  Is there continuity?
Yes
If the short to ground circuit could be detected:
•  Repair or replace the wiring harness for a possible short to ground.
If the short to ground circuit could not be detected:
•  Replace the PCM (short to ground in the PCM internal circuit).
Go to Step 10.
No
Go to the next step.
6
INSPECT PURGE SOLENOID VALVE
•  Inspect the purge solenoid valve.
•  Is there any malfunction?
Yes
Replace the purge solenoid valve, then go to Step 10.
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)
No
Go to the next step.
7
INSPECT PCM CONNECTOR CONDITION
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 10.
No
Go to the next step.
8
INSPECT PURGE SOLENOID VALVE SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Purge solenoid valve and PCM connectors are disconnected.
•  Switch the ignition to ON (engine off).
•  Measure the voltage at the purge solenoid valve terminal A (wiring harness-side).
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 10.
No
Go to the next step.
9
INSPECT PURGE SOLENOID VALVE SIGNAL CIRCUIT FOR OPEN CIRCUIT
•  Purge solenoid valve and PCM connectors are disconnected.
•  Inspect for continuity between purge solenoid valve terminal A (wiring harness-side) and PCM terminal 2C (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
10
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Perform the KOEO or KOER self test.
•  Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)
No
Go to the next step.
11
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [MZR 1.8, MZR 2.0, MZR 2.5].)
No
DTC troubleshooting completed.
