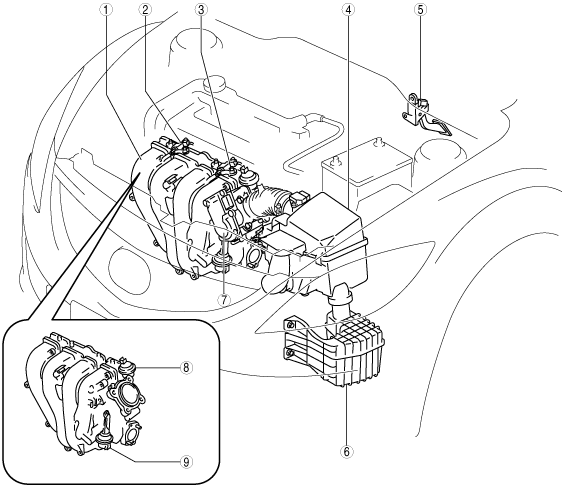

INTAKE-AIR SYSTEM LOCATION INDEX [MZR 2.0 DISI]

id0113d4801700

am6zzw00005176

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See INTAKE MANIFOLD VACUUM INSPECTION [MZR 2.0 DISI].)
2	Variable swirl solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See VARIABLE SWIRL SOLENOID VALVE INSPECTION [MZR 2.0 DISI].)
3	Variable intake air solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION [MZR 2.0 DISI].)
4	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See AIR CLEANER ELEMENT INSPECTION [MZR 2.0 DISI].)
5	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 2.0 DISI].)
6	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI].)
7	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See THROTTLE BODY INSPECTION [MZR 2.0 DISI].)
8	Variable swirl shutter valve actuator (See VARIABLE SWIRL SHUTTER VALVE ACTUATOR INSPECTION [MZR 2.0 DISI].)
9	Variable intake air shutter valve actuator (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [MZR 2.0 DISI].)
