EMISSION SYSTEM LOCATION INDEX [MZR 2.0 DISI]

id0116d4803700

Engine Compartment Side

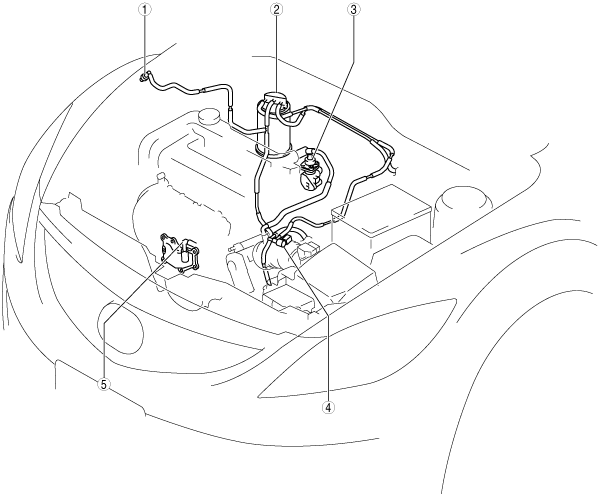

L.H.D.

am6zzw00005711

1	Evaporative gas check valve (one-way) (See EVAPORATIVE GAS CHECK VALVE (ONE-WAY) INSPECTION [MZR 2.0 DISI].)
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See CHARCOAL CANISTER INSPECTION [MZR 2.0 DISI].)
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See EGR VALVE INSPECTION [MZR 2.0 DISI].)
4	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See PURGE SOLENOID VALVE INSPECTION [MZR 2.0 DISI].)
5	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZR 2.0 DISI].)

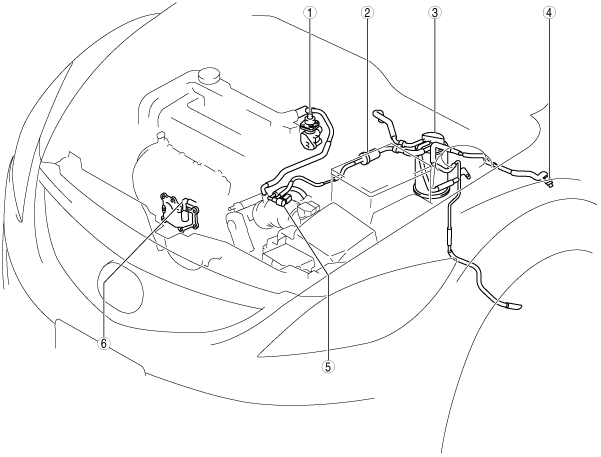

R.H.D.

am6zzw00005712

1	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See EGR VALVE INSPECTION [MZR 2.0 DISI].)
2	Catch tank (See CATCH TANK REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See CATCH TANK INSPECTION [MZR 2.0 DISI].)
3	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See CHARCOAL CANISTER INSPECTION [MZR 2.0 DISI].)
4	Evaporative gas check valve (one-way) (See EVAPORATIVE GAS CHECK VALVE (ONE-WAY) INSPECTION [MZR 2.0 DISI].)
5	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See PURGE SOLENOID VALVE INSPECTION [MZR 2.0 DISI].)
6	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZR 2.0 DISI].)

Exhaust System Side

am6zzw00005713

1	WU-TWC
2	TWC

Fuel Tank Side

am6zzw00005714

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See ROLLOVER VALVE INSPECTION [MZR 2.0 DISI].)
2	Fuel-filler cap
3	Check valve (two-way) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR 2.0 DISI].)
