REAR LOWER ARM REMOVAL/INSTALLATION

id021400800900

1.  When working on the right side of the vehicle, disconnect the rear auto leveling sensor link. (Vehicle with discharge headlight system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

2.  Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION.)

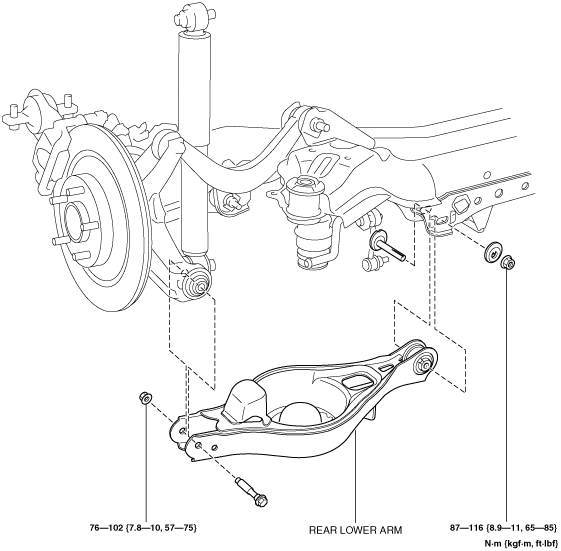

3.  Remove the rear lower arm.

am6zzw00001540

4.  Install the rear lower arm.

5.  Install the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION.)

6.  Inspect the rear wheel alignment, and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)
