DSC HU/CM REMOVAL/INSTALLATION

id041500801000

Warning
•  When replacing the DSC HU/CM, the configuration procedure must be done before removing the DSC HU/CM. If the configuration is not completed before removing the DSC HU/CM, DSC will not work properly after installation of the DSC HU/CM.
•  If the DSC sensor initialization for a MTX vehicle is not completed, the Hill Launch Assist (HLA) will not operate properly and could cause an accident. Therefore, after replacing or removing the DSC HU/CM or SAS control module, make sure to perform the DSC sensor initialization to assure proper Hill Launch Assist (HLA) operation.
Caution
•  The internal parts of the DSC HU/CM could be damaged if dropped. Be careful not to drop the DSC HU/CM. Replace the DSC HU/CM if it is subjected to an impact.

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See AIR BLEEDING.)

4.  Configurate the DSC HU/CM (only when replacing it). (See DSC CONFIGURATION.)

5.  Perform the initialization procedures for the low-G (XY) sensor. (MTX) (See DSC SENSOR INITIALIZATION PROCEDURE.)

6.  Clear the DTCs from the memory. (See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)].)

am6zzw00005063

1
Connector
(See Connector Removal Note.)
(See Connector Installation Note.)
2
Brake pipe
(See Brake Pipe Removal Note.)
(See Brake Pipe Installation Note.)
3
DSC HU/CM component

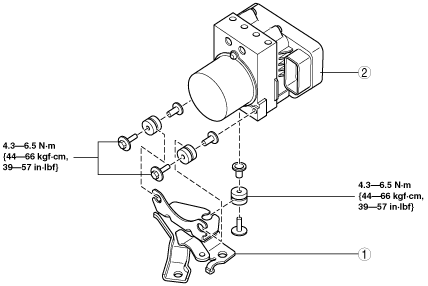

am6zzw00005064

1
Bracket
2
DSC HU/CM


Connector Removal Note

1.  Disconnect the connector in the order shown in the figure.

am6zzw00005065

Caution
•  If sand or other particles get into the connector, it may be difficult to remove. In order not to damage the connector, be careful not to use excessive force removing the connector.


Brake Pipe Removal Note

1.  Place an alignment mark on the brake pipe and DSC HU/CM.

am6zzw00005066

2.  Affix protective tape to the connector to prevent brake fluid from entering.

3.  Remove the brake pipe.

4.  Adhere protective tape to the installation area of the DSC HU/CM brake pipe to prevent foreign material penetration.


Brake Pipe Installation Note

1.  Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.

am6zzw00005067


Connector Installation Note

1.  Connect the connector in the order shown in the figure.

am6zzw00005068

2.  After connecting the connector, verify that the connector is completely locked.
