DSC LOCATION INDEX

id041500802100

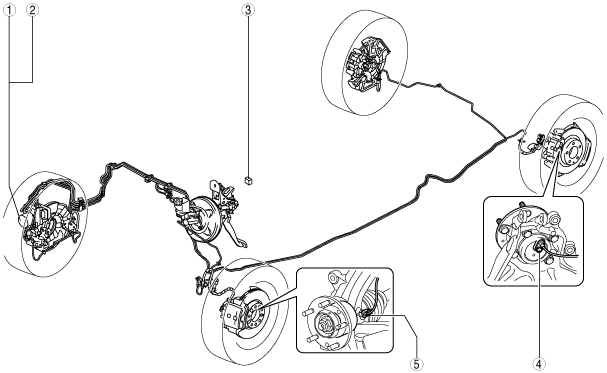

L.H.D.

am6zzw00005073

1	DSC HU/CM (MTX) (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC CONFIGURATION.) (See DSC SENSOR INITIALIZATION PROCEDURE.) (See DSC HU/CM INSPECTION.) DSC HU/CM (ATX) (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC CONFIGURATION.) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.)
3	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
4	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
5	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

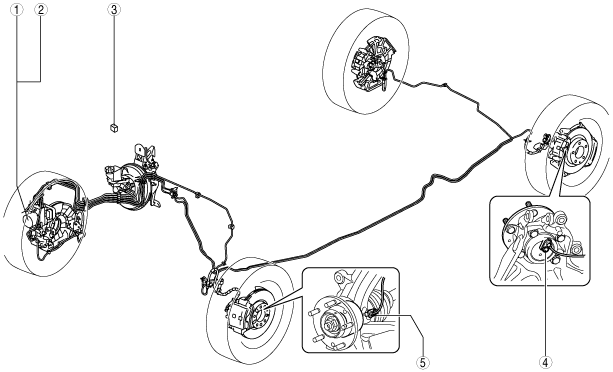

R.H.D.

am6zzw00005074

1	DSC HU/CM (MTX) (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC CONFIGURATION.) (See DSC SENSOR INITIALIZATION PROCEDURE.) (See DSC HU/CM INSPECTION.) DSC HU/CM (ATX) (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC CONFIGURATION.) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.)
3	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
4	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
5	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
