DTC P0711:00 [FS5A-EL]

id050221817300

DTC P0711:00

TFT sensor circuit range/performance

DETECTION CONDITION

•  The TCM detects that input voltage from the TFT sensor is less than 0.03 V when the following conditions are met.

―  Time since engine start: more than 180 s

―  Vehicle is driven for 90 s or more at vehicle speed 25—59 km/h {16—36 mph}, and then 60 km/h {38 mph} or more for 60 s or more

Diagnostic support note

•  The MIL illuminates if the TCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the TCM.

•  The AT warning light does not illuminate.

•  PENDING CODE is available.

•  FREEZE FRAME DATA is available.

•  The DTC is stored in the TCM memory.

POSSIBLE CAUSE

•  Coupler component connector or terminal malfunction

•  TFT sensor malfunction

•  TCM malfunction

DTC P0711:00	TFT sensor circuit range/performance
DETECTION CONDITION	• The TCM detects that input voltage from the TFT sensor is less than 0.03 V when the following conditions are met. ― Time since engine start: more than 180 s ― Vehicle is driven for 90 s or more at vehicle speed 25—59 km/h {16—36 mph}, and then 60 km/h {38 mph} or more for 60 s or more Diagnostic support note • The MIL illuminates if the TCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the TCM. • The AT warning light does not illuminate. • PENDING CODE is available. • FREEZE FRAME DATA is available. • The DTC is stored in the TCM memory.
POSSIBLE CAUSE	• Coupler component connector or terminal malfunction • TFT sensor malfunction • TCM malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA HAS BEEN RECORDED • Has the FREEZE FRAME DATA been recorded on the repair order?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2	VERIFY RELATED REPAIR INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related repair information available?	Yes	Perform repair or diagnosis according to the available repair information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.

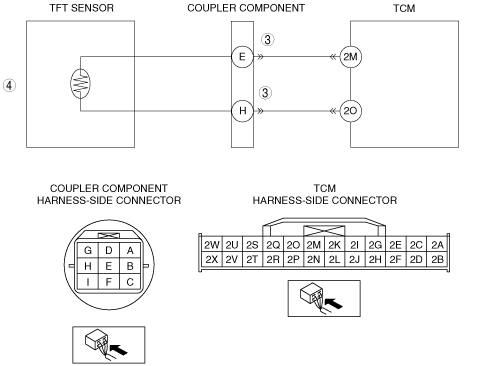

3	INSPECT COUPLER COMPONENT CONNECTOR FOR POOR CONNECTION • Switch the ignition to off. • Disconnect the coupler component connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion) • Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 5.
3		No	Go to the next step.
4	INSPECT TFT SENSOR • Inspect the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [FS5A-EL].) • Is there any malfunction?	Yes	Replace the coupler component, then go to next step. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [FS5A-EL].)
4		No	Go to the next step.
5	VERIFY TROUBLESHOOTING OF DTC P0711:00 COMPLETED • Make sure to reconnect all the disconnected connectors. • Clear the DTC using the M-MDS. • Perform the following procedure to ensure that the DTC has been resolved: 1. Start the engine. 2. Idle the engine for 180 s or more. 3. Drive the vehicle at 25—59 km/h {16—36 mph} for 90 s or more. 4. Drive the vehicle at more than 60 km/h {38 mph} for 60 s or more. • Is the PENDING CODE same as the DTC present?	Yes	Replace the TCM, then go to the next step. (See TCM REMOVAL/INSTALLATION [FS5A-EL].)
5		No	Go to the next step.
6	VERIFY NO DTC HAS BEEN PRESENTED • Perform the “Reading DTCs Procedure”. (See ON-BOARD DIAGNOSTIC SYSTEM DTC INSPECTION [FS5A-EL].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [FS5A-EL].)
6		No	DTC troubleshooting completed.
