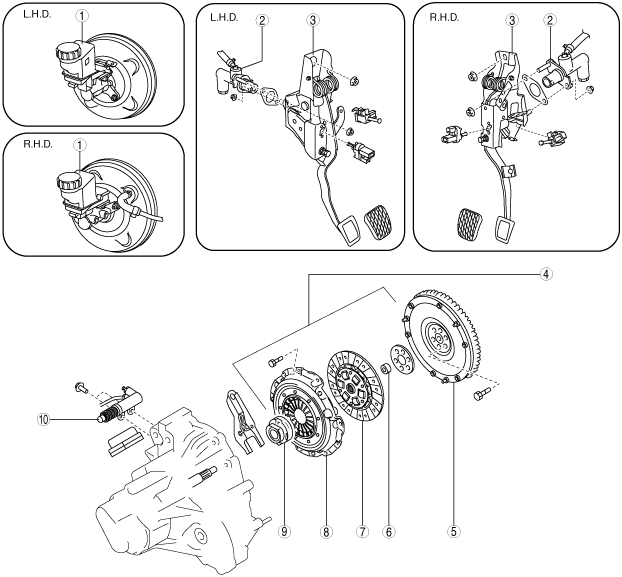

CLUTCH LOCATION INDEX [G66M-R]

id0510m5800400

am6zzw00005963

1	Reserve tank (See CLUTCH FLUID INSPECTION [G66M-R].) (See CLUTCH FLUID AIR BLEEDING/REPLACEMENT [G66M-R].)
2	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [G66M-R].) (See CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY [G66M-R].)
3	Clutch pedal (See CLUTCH PEDAL INSPECTION/ADJUSTMENT [G66M-R].) (See CLUTCH PEDAL REMOVAL/INSTALLATION [G66M-R].)
4	Clutch unit (See CLUTCH UNIT REMOVAL/INSTALLATION [G66M-R].)
5	Flywheel (See FLYWHEEL INSPECTION [G66M-R].)
6	Pilot bearing (See PILOT BEARING INSPECTION [G66M-R].)
7	Clutch disc (See CLUTCH DISC INSPECTION [G66M-R].)
8	Clutch cover (See CLUTCH COVER INSPECTION [G66M-R].)
9	Clutch release collar (See CLUTCH RELEASE COLLAR INSPECTION [G66M-R].)
10	Clutch release cylinder (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [G66M-R].) (See CLUTCH RELEASE CYLINDER DISASSEMBLY/ASSEMBLY [G66M-R].)
