1
|
INSPECT PCM DTC (INSPECT GENERATOR CIRCUIT)
• Switch the ignition to off.
• Connect the M-MDS to the DLC-2.
• Perform the PCM DTC inspection using the M-MDS.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
Go to the next step.
|
|
2
|
INSPECT FUSE
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Remove the AUX HEATER 20 A fuse.
• Is the fuse normal?
|
Yes
|
Install the AUX HEATER 20 A fuse, then go to the next step.
|
|
No
|
Replace the AUX HEATER 20 A fuse, then go to Step 7.
|
|
3
|
INSPECT BATTERY
• Is the battery normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace/charge the battery, then go to Step 7.
|
|
4
|

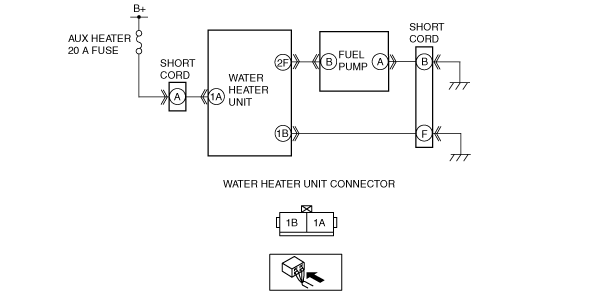

INSPECT WATER HEATER UNIT POWER SUPPLY CIRCUIT FOR SHORT CIRCUIT TO GROUND
• Disconnect the water heater unit connector.
• Inspect for continuity between water heater unit terminal 1A and body ground.
• Is there continuity?
|
Yes
|
Repair the wiring harness, then go to Step 7.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT WATER HEATER UNIT POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between water heater unit terminal 1A and battery positive terminal.
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the wiring harness, then go to the next step.
|
|
6
|
INSPECT WATER HEATER UNIT
• Perform the water heater system operation check.
• Clear DTCs using the M-MDS.
• Perform the water heater unit DTC inspection using the M-MDS.
• Are DTCs U3003:16 or U3003:17 displayed?
|
Yes
|
Replace the water heater unit, then go to the next step.
|
|
No
|
Go to the next step.
|
|
7
|
VERIFY AFTER REPAIR PROCEDURE
• Perform after repair procedure.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC troubleshooting.
|
|
No
|
Troubleshooting completed.
|
