COWL PANEL REMOVAL/INSTALLATION

id091000406200

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Windshield wiper arm (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION)

(2)  Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION)

(3)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION)

(4)  Windshield wiper motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION)

3.  Remove the washer hose grommet from the cowl panel and disconnect the front washer hose.

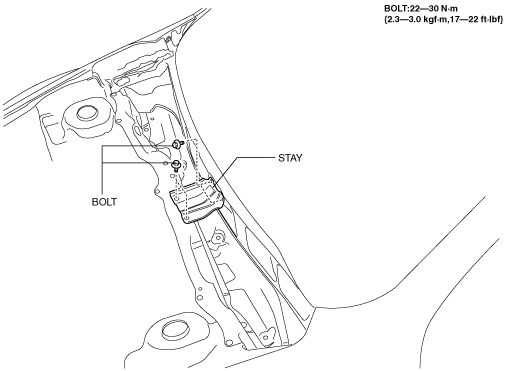

4.  Remove the bolts, then remove the stay.

am6zzw00002695

5.  Remove bolts.

am6zzw00001197

6.  Remove the cowl panel in the direction of the arrow shown in the figure.

am6zzw00001198

7.  Install in the reverse order of removal.
