REAR SEAT BELT REMOVAL/INSTALLATION [4SD]

id0811008008c2

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

(3)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

2.  Remove the rear seat belt lower anchor installation bolt.

am6zzw00001001

3.  Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

4.  Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

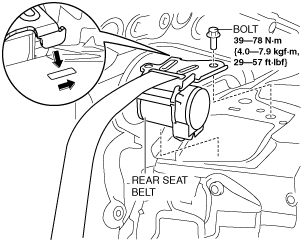

5.  Remove the bolt.

am6zzw00001002

6.  Remove the rear seat belt.

7.  Install in the reverse order of removal.
