DTC B100B:11 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id09021c395500

Warning
•  If this DTC is detected, the system will enter the fail-safe function to ensure safety. If the vehicle is left as it is for a specified time limit or more, or the ignition is operated a specified number of times or more while the fail-safe function is operating, the ignition will remain stuck in off and it is possible that the engine cannot be started. Therefore, perform the malfunction diagnosis while the engine can be started. In addition, after having performed the malfunction diagnosis, verify that this DTC is not detected with the steering wheel locked. If the DTC is not detected, the system returns to normal from the fail-safe function.
Note
•  When the system enters the fail-safe function, the keyless warning light and the push button start indicator light illuminate as follows:
―  When the clutch pedal (MTX) or the brake pedal (ATX) is depressed while the ignition is switched off, both lights illuminate (red).
―  When the ignition is switched to ACC or ON, both lights illuminate (red) constantly.

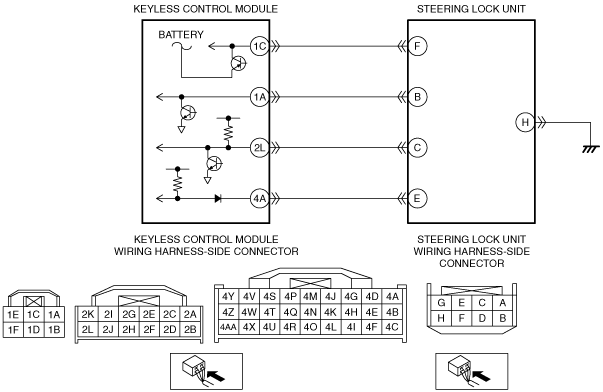

am6zzw00006382

DESCRIPTION

Short to ground in steering lock unit ground circuit
DETECTION CONDITION
•  Steering lock unit ground circuit voltage less than threshold is detected for 0.2 s, while the circuit is not active.
POSSIBLE CAUSE
•  Steering lock unit connector or terminals malfunction
•  Keyless control module connector or terminals malfunction
•  Short to ground in wiring harness between steering lock unit terminal B and keyless control module terminal 1A
•  Steering lock unit malfunction
•  Keyless control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
INSPECT STEERING LOCK UNIT CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the steering lock unit connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 5.
No
Go to the next step.
2
INSPECT KEYLESS CONTROL MODULE CONNECTOR CONDITION
•  Disconnect the keyless control module connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 5.
No
Go to the next step.
3
INSPECT STEERING LOCK UNIT GROUND CIRCUIT FOR SHORT TO GROUND
•  Steering lock unit and keyless control module connectors are disconnected.
•  Inspect for continuity between steering lock unit terminal B (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 5.
No
Go to the next step.
4
INSPECT STEERING LOCK UNIT
•  Inspect the steering lock unit.
•  Is there any malfunction?
Yes
Replace the steering lock unit and perform the steering lock unit programming.
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
(See STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
Go to the next step.
No
Go to the next step.
5
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect the disconnected connectors.
•  Reconnect the negative battery cable.
•  Perform the following procedure within 5 min.
1.  Clear the DTC from the keyless control module using the M-MDS.
2.  Switch the ignition to off, then open the door to lock the steering.
3.  Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Repeat the inspection from Step 1.
If the malfunction recurs, replace the keyless control module, then go to the next step.
(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
No
Go to the next step.
6
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
No
DTC troubleshooting completed.
