DTC B1178:11 [BCM]

id0902f5340900

4SD

Description

•  Trunk lid latch switch circuit malfunction

Detection Condition

•  Short to ground in trunk lid latch switch circuit with the trunk closed (trunk lid latch switch off).

Possible Causes

•  Trunk lid latch switch connector or terminals malfunction

•  Trunk lid latch switch malfunction

•  BCM connector or terminals malfunction

•  Short to ground in wiring harness between the following terminals:

―  Trunk lid latch switch terminal C—BCM terminal 6C

―  Trunk compartment light terminal B—BCM terminal 6C

•  BCM malfunction

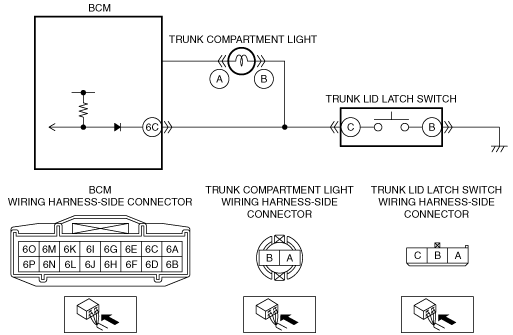

System Wiring Diagram

am6zzw00006935

Diagnostic Procedure

Step	Inspection		Action
1	PERFORM DTC INSPECTION •  Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) •  Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) •  Is the DTC B1178:11 present?	Yes	Go to the next step.
		No	DTC troubleshooting completed.
2	INSPECT TRUNK LID LATCH SWITCH CONNECTOR CONDITION •  Switch the ignition to off. •  Disconnect the negative battery cable. •  Disconnect the trunk lid latch switch connector. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
		No	Go to the next step.
3	INSPECT TRUNK LID LATCH SWITCH •  Inspect the trunk lid latch switch. (See TRUNK LID LATCH SWITCH INSPECTION.) •  Is there any malfunction?	Yes	Replace the trunk lid latch switch, then go to Step 6. (See TRUNK LID LATCH AND LOCK ACTUATOR INSPECTION.)
		No	Go to the next step.
4	INSPECT BCM CONNECTOR CONDITION •  Disconnect the BCM connector. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
		No	Go to the next step.
5	INSPECT TRUNK LID LATCH SWITCH CIRCUIT FOR SHORT TO GROUND •  Trunk lid latch switch and BCM connectors are disconnected. •  Inspect for continuity between the following terminals (wiring harness-side) and body ground: ―  Trunk lid latch switch terminal C ―  Trunk compartment light terminal B •  Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to the next step.
		No	Go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED •  Make sure to reconnect all disconnected connectors. •  Reconnect the negative battery cable. •  Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) •  Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) •  Is the DTC B1178:11 present?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
		No	DTC troubleshooting completed.

5HB

Description

•  Liftgate latch switch circuit malfunction

Detection Condition

•  Short to ground in liftgate latch switch circuit with the liftgate closed (liftgate latch switch off).

Possible Causes

•  Liftgate latch switch connector or terminals malfunction

•  Liftgate latch switch malfunction

•  Liftgate auto closure control module connector or terminals malfunction

•  BCM connector or terminals malfunction

•  Short to ground in wiring harness between the following terminals:

―  Liftgate latch switch terminal A—BCM terminal 6C

―  Liftgate auto closure control module terminal 2B—BCM terminal 6C

―  Cargo compartment light terminal B—BCM terminal 6C

•  Liftgate auto closure control module malfunction

•  BCM malfunction

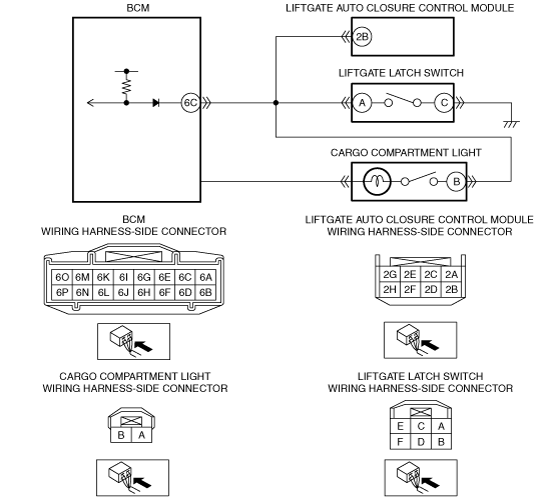

System Wiring Diagram

am6zzw00006936

Diagnostic Procedure

Step	Inspection		Action
1	PERFORM DTC INSPECTION •  Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) •  Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) •  Is the DTC B1178:11 present?	Yes	Go to the next step.
		No	DTC troubleshooting completed.
2	INSPECT LIFTGATE LATCH SWITCH CONNECTOR CONDITION •  Switch the ignition to off. •  Disconnect the negative battery cable. •  Disconnect the liftgate latch switch connector. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 8.
		No	Go to the next step.
3	INSPECT LIFTGATE LATCH SWITCH •  Inspect the liftgate latch switch. (See LIFTGATE LATCH SWITCH INSPECTION.) •  Is there any malfunction?	Yes	Replace the liftgate latch and lock actuator, then go to Step 8. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
		No	Go to the next step.
4	INSPECT LIFTGATE AUTO CLOSURE CONTROL MODULE CONNECTOR CONDITION •  Disconnect the liftgate auto closure control module connector. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 8.
		No	Go to the next step.
5	INSPECT BCM CONNECTOR CONDITION •  Disconnect the BCM connector. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 8.
		No	Go to the next step.
6	INSPECT LIFTGATE LATCH SWITCH CIRCUIT FOR SHORT TO GROUND •  Liftgate latch switch, liftgate auto closure control module and BCM connectors are disconnected. •  Inspect for continuity between the following terminals (wiring harness-side) and body ground: ―  Liftgate latch switch terminal A ―  Liftgate auto closure control module terminal 2B ―  Cargo compartment light terminal B •  Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 8.
		No	Go to the next step.
7	INSPECT LIFTGATE AUTO CLOSURE CONTROL MODULE •  Make sure to reconnect all disconnected connectors. •  Reconnect the negative battery cable. •  Measure the voltage at the liftgate auto closure control module terminal 2B (wiring harness-side). •  Is the voltage normal? (See LIFTGATE AUTO CLOSURE CONTROL MODULE INSPECTION.)	Yes	Go to the next step.
		No	Replace the liftgate auto closure control module, then go to the next step. (See LIFTGATE AUTO CLOSURE CONTROL MODULE REMOVAL/INSTALLATION.)
8	VERIFY TROUBLESHOOTING COMPLETED •  Make sure to reconnect all disconnected connectors. •  Reconnect the negative battery cable. •  Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) •  Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) •  Is the DTC B1178:11 present?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
		No	Go to the next step.
9	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
		No	DTC troubleshooting completed.

WAGON

Description

•  Cargo compartment light switch circuit malfunction

Detection Condition

•  Short to ground in cargo compartment light switch circuit with the liftgate closed (cargo compartment light switch off).

Possible Causes

•  Cargo compartment light switch connector or terminals malfunction

•  Cargo compartment light switch malfunction

•  BCM connector or terminals malfunction

•  Short to ground in wiring harness between the following terminals:

―  Cargo compartment light switch terminal C—BCM terminal 6C

―  Cargo compartment light terminal C—BCM terminal 6C

•  BCM malfunction

System Wiring Diagram

am6zzw00006937

Diagnostic Procedure

Step	Inspection		Action
1	PERFORM DTC INSPECTION •  Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) •  Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) •  Is the DTC B1178:11 present?	Yes	Go to the next step.
		No	DTC troubleshooting completed.
2	INSPECT CARGO COMPARTMENT LIGHT SWITCH CONNECTOR CONDITION •  Switch the ignition to off. •  Disconnect the negative battery cable. •  Disconnect the cargo compartment light switch connector. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
		No	Go to the next step.
3	INSPECT CARGO COMPARTMENT LIGHT SWITCH •  Inspect the cargo compartment light switch. (See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION.) •  Is there any malfunction?	Yes	Replace the cargo compartment light switch, then go to Step 6. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
		No	Go to the next step.
4	INSPECT BCM CONNECTOR CONDITION •  Disconnect the BCM connector. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
		No	Go to the next step.
5	INSPECT CARGO COMPARTMENT LIGHT SWITCH CIRCUIT FOR SHORT TO GROUND •  Cargo compartment light switch and BCM connectors are disconnected. •  Inspect for continuity between the following terminals (wiring harness-side) and body ground: ―  Cargo compartment light switch terminal C ―  Cargo compartment light terminal C •  Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to the next step.
		No	Go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED •  Make sure to reconnect all disconnected connectors. •  Reconnect the negative battery cable. •  Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) •  Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) •  Is the DTC B1178:11 present?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
		No	DTC troubleshooting completed.
