BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION

id094000800400

Caution

•  When replacing the BCM, the configuration procedure must be performed before removing the BCM. Replacing the BCM without performing the configuration procedure will result in system malfunction.

1.  Perform the BCM configuration when replacing it. (See BODY CONTROL MODULE (BCM) CONFIGURATION.)

2.  Disconnect the negative battery cable.

3.  Remove the front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

4.  Remove the front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the connector at the position shown in the figure.

am6zzw00000398

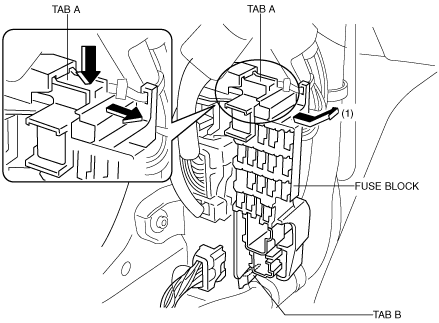

6.  Remove tab A as shown in the figure, pull the fuse block in the direction of the arrow (1), and remove tab B.

am6zzw00005382

7.  Remove the fuse block.

8.  Disconnect the connector at the position shown in the figure.

am6zzw00000340

9.  Remove the nut.

am6zzw00005383

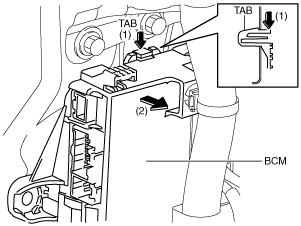

10.  Press the BCM tab in the direction of the arrow (1) shown in the figure while pulling it in the direction of the arrow (2), and then remove the tab from the body.

am6zzw00005384

11.  Disconnect the connector at the position shown in the figure.

am6zzw00000341

12.  Detach the clips and remove the vehicle wiring harness.

am6zzw00005385

13.  Remove the BCM.

14.  Install in the reverse order of removal.

15.  Perform the steering angle sensor initialization procedure. (See STEERING ANGLE SENSOR INITIALIZATION PROCEDURE.)
