REAR SEAT BACK FRAME REMOVAL/INSTALLATION

id091300912500

4SD

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

2.  Remove the rear buckle installation bolt. (See REAR BUCKLE REMOVAL/INSTALLATION.)

3.  Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION [4SD].)

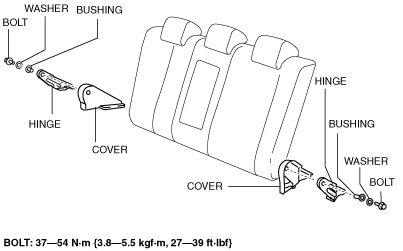

4.  Remove the bolt, then remove the washer, bushing, hinge, and the cover.

am6zzw00002432

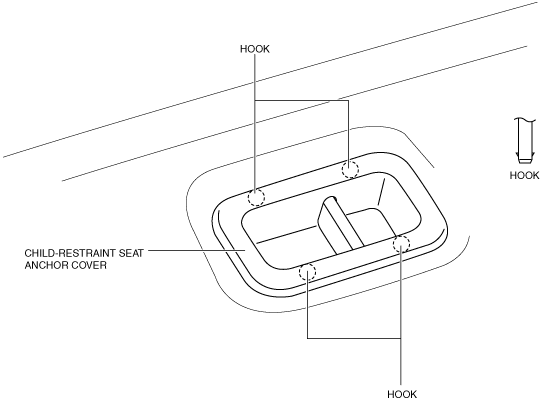

5.  Remove the child-restraint seat anchor covers while remove the hooks.

am6zzw00002979

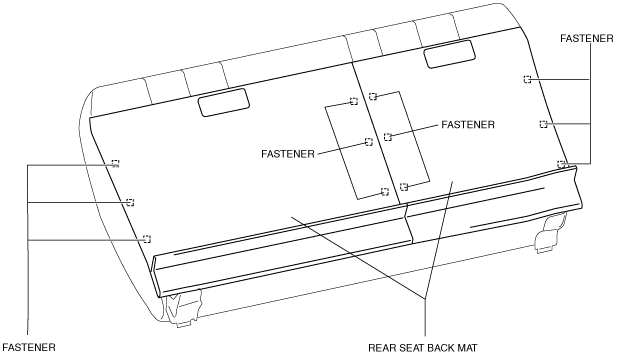

6.  Peel the rear seat back mat and remove the fasteners.

am6zzw00007221

7.  Remove the rear seat back mat.

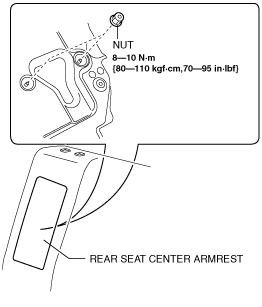

8.  Remove the nuts then remove the rear seat center armrest.

am6zzw00007222

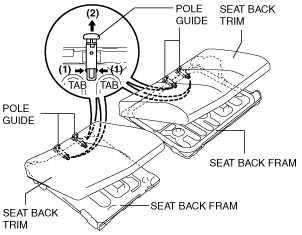

9.  Peal back the seat back trim, release the pole guide tabs in the direction of arrow (1) shown in the figure, then pull out the pole guides in the direction of arrow (2).

am6zzw00007223

10.  Remove the seat back frame from the seat back pad by pulling it in the direction of the arrow.

am6zzw00004592

11.  Install in the reverse order of removal.

5HB, Wagon

1.  Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)

2.  Remove the rear buckle installation bolt. (See REAR BUCKLE REMOVAL/INSTALLATION.)

3.  Remove the rear seat back. (See REAR SEAT DISASSEMBLY/ASSEMBLY [5HB/WAGON].)

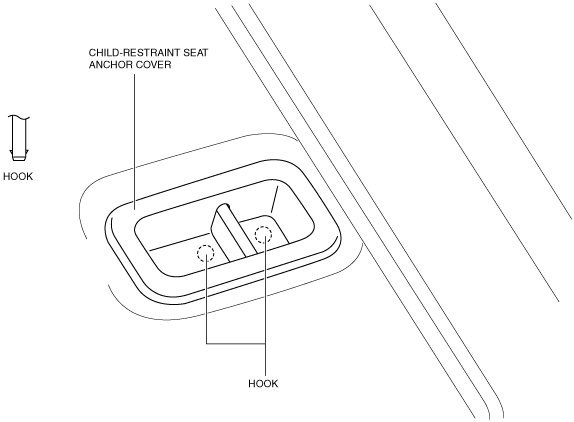

4.  Remove the child-restraint seat anchor covers while remove the hooks.

am6zzw00002481

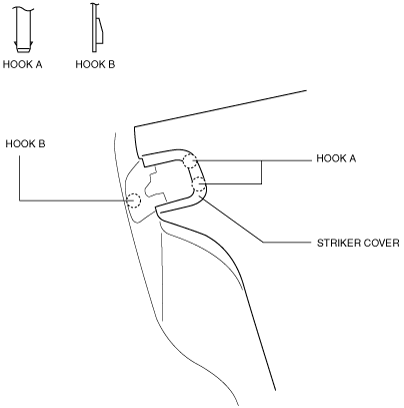

5.  Remove the striker cover while remove the hook A, B.

am6zzw00002745

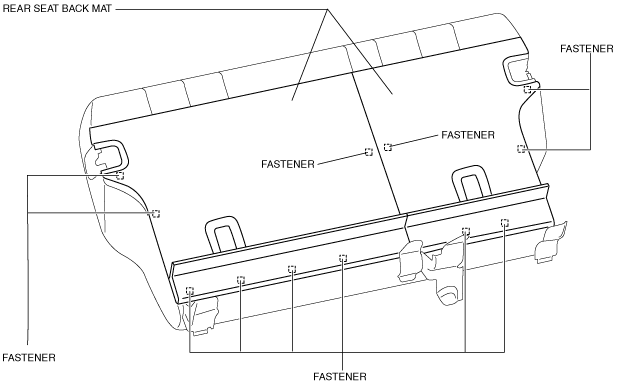

6.  Remove the rear seat back mat, while remove the fasteners.

am6zzw00007224

7.  Remove the nut then remove the rear seat armrest.

am6zzw00007222

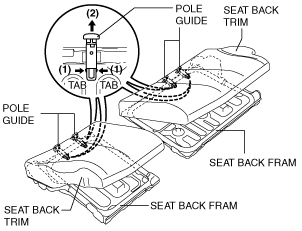

8.  Peal back the seat back trim, release the pole guide tabs in the direction of arrow (1) shown in the figure, then pull out the pole guides in the direction of arrow (2).

am6zzw00007225

9.  Release the tabs of the rod by pulling it in the direction of arrow (3) shown in the figure.

am6zzw00007226

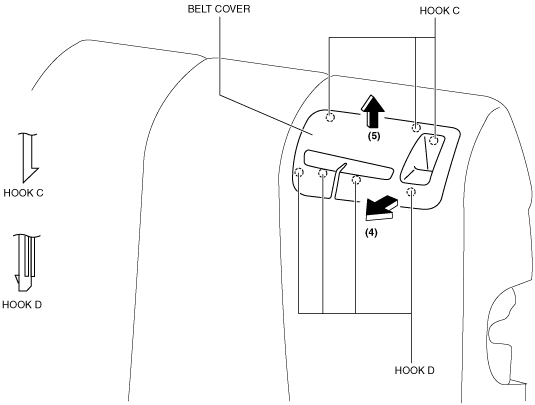

10.  While releasing the hooks C, D of the belt cover in the direction of arrow (4), (5) shown in the figure.

am6zzw00007285

11.  Remove the seat back frame from the seat back pad by pulling it in the direction of the arrow.

am6zzw00004593

12.  Remove the nut, then remove the rear seat belt.

am6zzw00002983

13.  Install in the reverse order of removal.
