FRONT DOOR LOCK ACTUATOR INSPECTION

id091400428700

1.   To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.

am6zzw00006750

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
(5)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)
(6)  Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

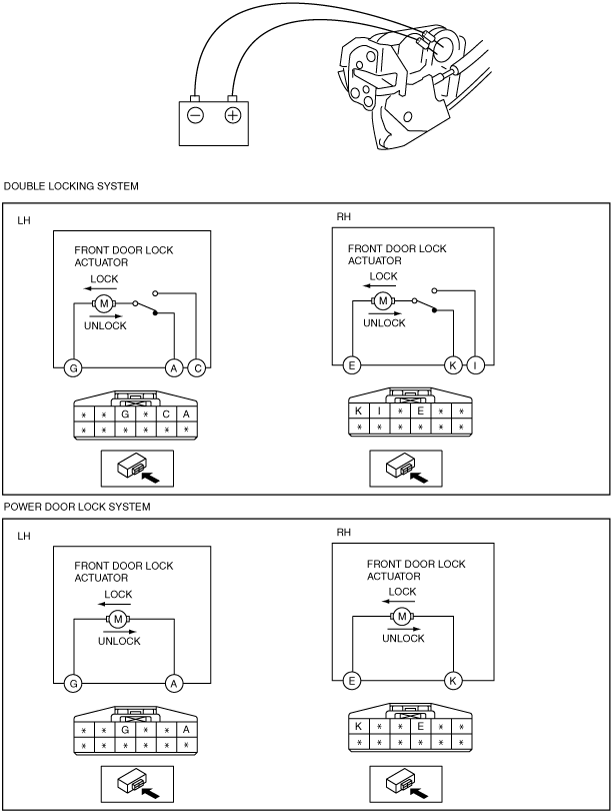

4.  Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

am6zzw00004514

•  If not as indicated in the table, replace the front door latch and lock actuator.

Double Locking System

Operation

Terminal

B+

Ground
LOCK
RH
I
E
LH
C
G
DOUBLE LOCK
RH
K
E
LH
A
G
UNLOCK
RH
E
K, I
LH
G
A, C

Power Door Lock System

Operation

Terminal

B+

Ground
LOCK
RH
K
E
LH
A
G
UNLOCK
RH
E
K
LH
G
A
