FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

id091400429400

1.  To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.

am6zzw00006637

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

4.  Remove the service hole cover.

am6zzw00000570

5.  Remove the tab, then remove the door lock-link bracket. (Driver’s door).

am6zzw00000571

6.  Remove the service hole cover.

am6zzw00000442

7.  Remove the screw from the service hole.

Note

•  The screw cannot be removed because of the stopper.

am6zzw00000443

8.  Lift the clip in the direction of the arrow (1), and pull out the key rod in the direction of the arrow (2).

am6zzw00006635

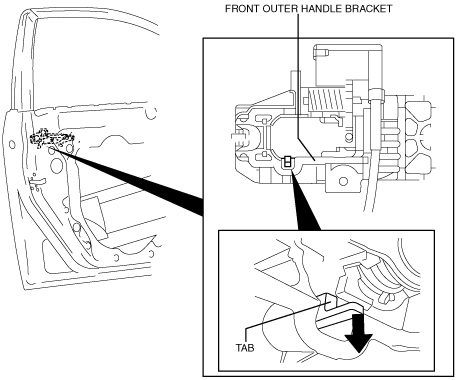

9.  Press the tab on the front outer handle bracket in the direction of the arrow.

am6zzw00000445

10.  Maintaining the condition in Step 9, remove the front key cylinder.

am2zzw00000669

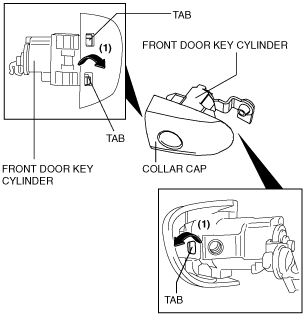

11.  Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the arrow, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.

am6zzw00004503

12.  Install in the reverse order of removal.
