FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400430500

1.  The following actuators and switches are integrated with the front door latch and lock actuator. Inspect the front door latch and lock actuator according to each inspection procedure for the following items.

•  Front door lock actuator (See FRONT DOOR LOCK ACTUATOR INSPECTION.)

•  Door lock-link switch (Vehicles with theft-deterrent system) (See DOOR LOCK-LINK SWITCH INSPECTION.)

•  Door latch switch (See FRONT DOOR LATCH SWITCH INSPECTION.)

•  Front door key cylinder (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)

L.H.D.

LH

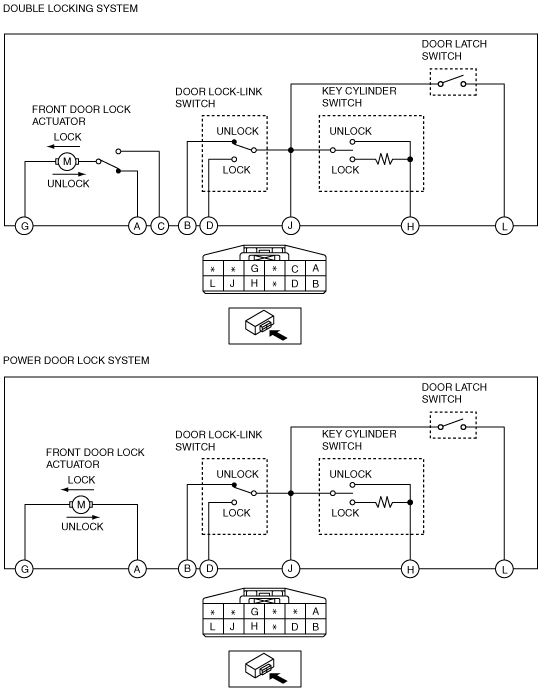

am6zzw00004510

RH

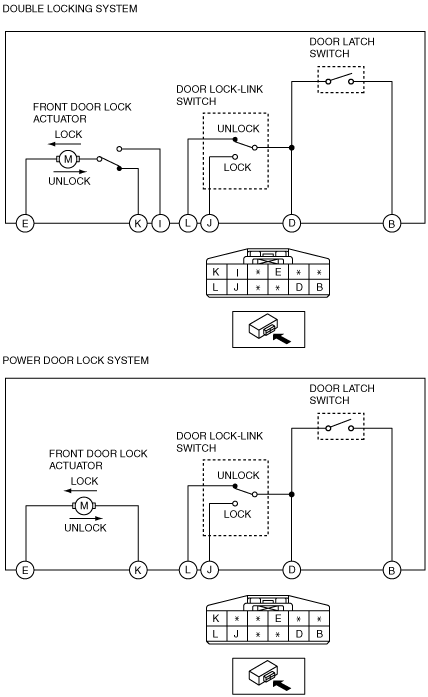

am6zzw00004511

R.H.D.

LH

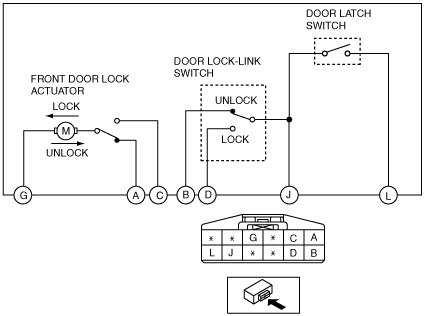

am6zzw00006748

RH

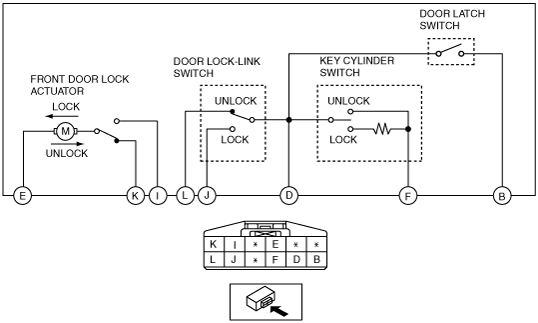

am6zzw00006749
