METER HOOD REMOVAL/INSTALLATION

id091700800900

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Bonnet release lever knob (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(6)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

2.  Pull the meter hood in the direction of the arrow shown in the figure and remove it while detaching the clips and pin.

L.H.D.

am6zzw00007357

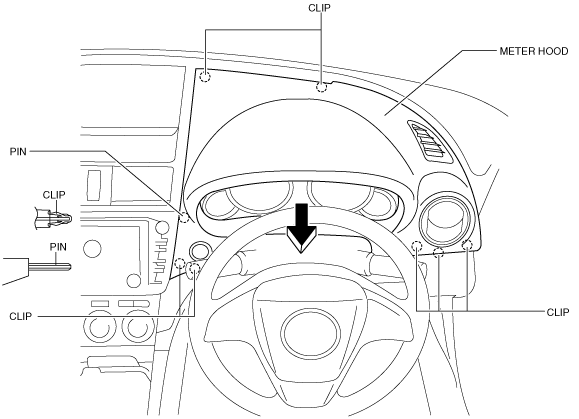

R.H.D.

am6zzw00007358

3.  Install in the reverse order of removal.
