LIFTGATE LOWER TRIM REMOVAL/INSTALLATION

id091700803800

5HB

1.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)

2.  Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION)

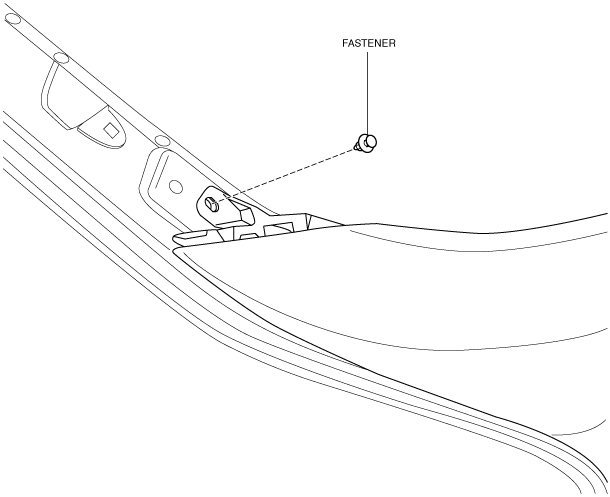

3.  Remove the fastener.

am6zzw00001809

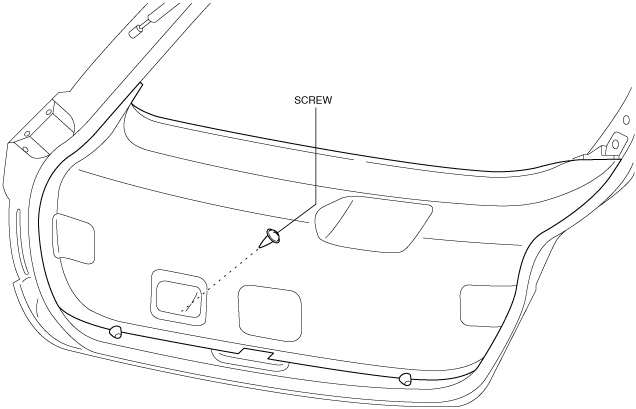

4.  Remove the screw.

am6zzw00001810

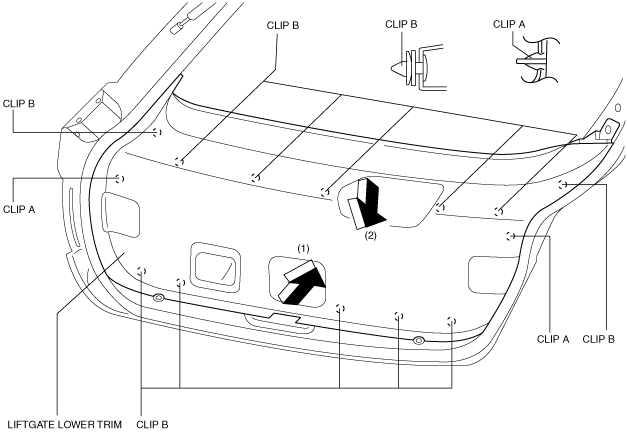

5.  Pull the liftgate lower trim in the direction of the arrow in the order of (1) and (2), then remove it while detaching the clips A and B.

am6zzw00001811

6.  Install in the reverse order of removal.

Wagon

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)

3.  Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION)

4.  Remove the recess. (See RECESS REMOVAL/INSTALLATION)

5.  Remove the fastener.

am6zzw00001809

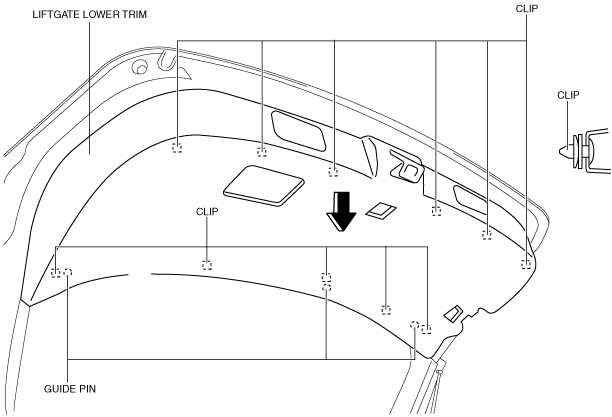

6.  Pull the liftgate lower trim in the direction of the arrow shown in the figure, detach the clips.

am6zzw00001812

7.  Remove the liftgate lower trim while remove the guide pins.

8.  Disconnect the cargo room lamp connector.

9.  Install in the reverse order of removal.
