LIGHT SWITCH INSPECTION

id091800802900

Vehicles Without Auto Light System

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the light switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the light switch.

Light Switch

am6zzw00005563

Turn Switch

am6zzw00003482

Vehicles With Auto Light System

1.  Verify that the continuity between the light switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the light switch.

Light Switch

am6zzw00005564

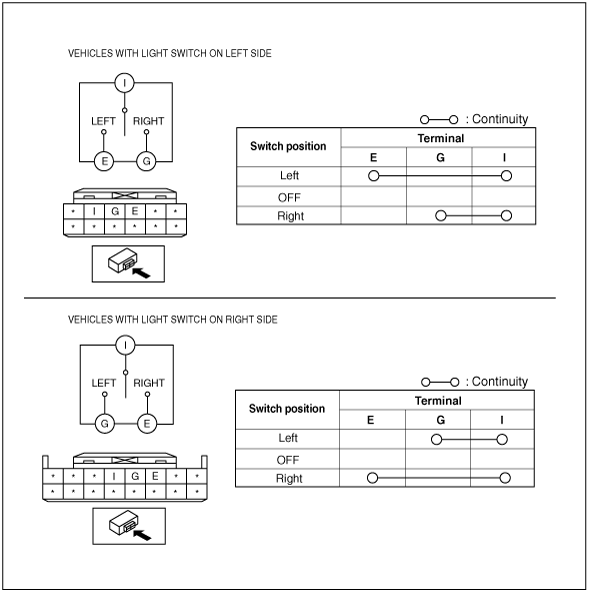

Turn Switch

am6zzw00003484
