REAR TURN LIGHT BULB REMOVAL/INSTALLATION
id091800813800
4SD
1. Disconnect the negative battery cable.
2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)
3. Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
aatjjw00006203
|
|
1
|
Connector
|
|
2
|
Socket
|
|
3
|
Rear turn light bulb
|
5. Install in the reverse order of removal.
5HB
1. Disconnect the negative battery cable.

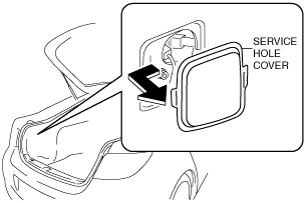

2. Remove the service hole cover.
am6zzw00006864
|
3. Remove in the order indicated in the table.
aatjjw00005689
|
|
1
|
Connector
|
|
2
|
Socket
|
|
3
|
Rear turn light bulb
|
4. Install in the reverse order of removal.
WGN
1. Disconnect the negative battery cable.
2. Remove the service hole cover A.
am6zzw00007394
|
3. Remove the service hole cover B.
am6zzw00007395
|

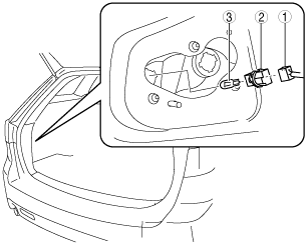

4. Remove in the order indicated in the table.
am6zzw00006866
|
|
1
|
Connector
|
|
2
|
Socket
|
|
3
|
Rear turn light bulb
|
5. Install in the reverse order of removal.
