BRAKE/TAILLIGHT BULB REMOVAL/INSTALLATION

id091800813900

1.  Disconnect the negative battery cable.

2.  Remove the trunk end trim. (4SD) (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (4SD) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the service hole cover. (5HB)

am6zzw00006867

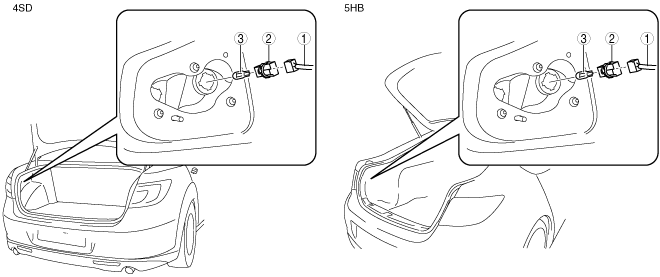

5.  Remove in the order indicated in the table.

am6zzw00006868

1	Connector
2	Socket
3	Brake/taillight bulb

6.  Install in the reverse order of removal.
