REAR WIPER AND WASHER SWITCH INSPECTION

id091900800400

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

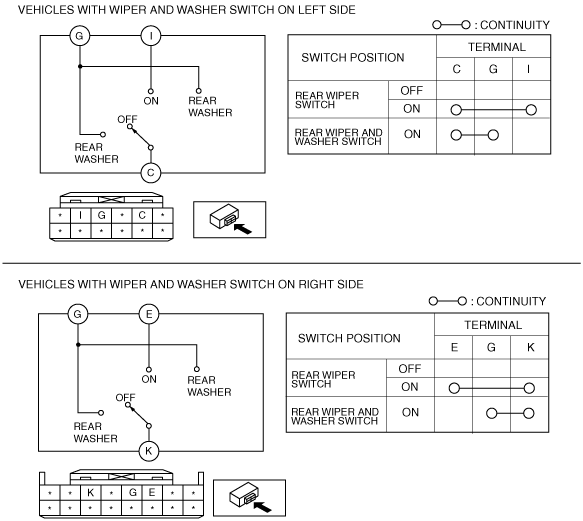

4.  Verify that the continuity between the rear wiper and washer switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the wiper and washer switch.

am6zzw00005970
