REAR SPEAKER REMOVAL/INSTALLATION
id092000802400
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
- (2) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (4) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (5) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)
- (6) Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

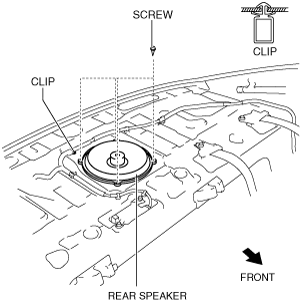

3. Remove the clip.
4. Remove the screws.

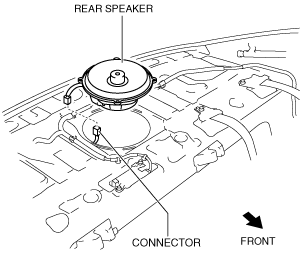

5. Remove the rear speaker.
6. Disconnect the connector.
7. Install in the reverse order of removal.
