RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0921000001z5

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (Driver side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (Driver side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Decoration panel (Driver side) (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(6)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

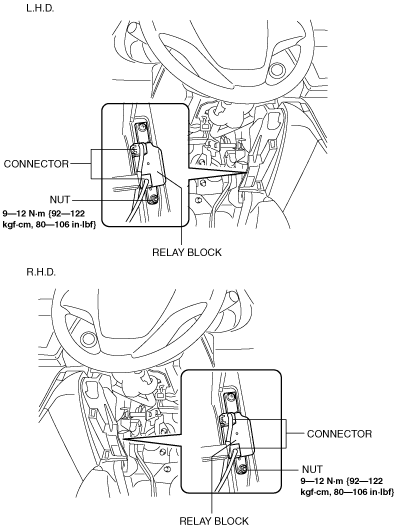

3.  Disconnect the connector.

am6zzw00002027

4.  Remove the nut.

5.  Remove the relay block.

6.  Install in the reverse order of removal.
